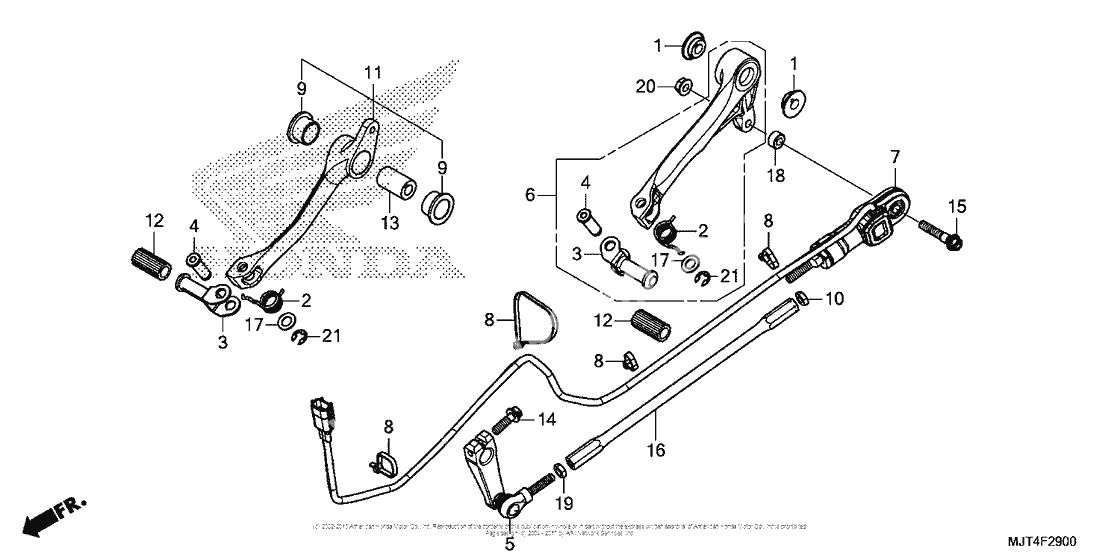

Педаль(Лапка)
Педаль(Лапка)
Collar, change pivot (Ref #1)
1
Part #24703-MJT-E00
SPRING (Ref #2)
2
Part #24704-MJT-E00
BAR, CHANGE PEDAL (Ref #3)
3
Part #24706-MJT-E00
Pin, change pedal (Ref #4)
4
Part #24707-MJT-E00
Arm, gearshift (Ref #5)
5
Part #24710-MJT-E00
Pedal, gearshift (Ref #6)
6
Part #24720-MJT-E00
SENSOR, GEARSHIFT (Ref #7)
7
Part #24730-MJT-E00
Band (black 3.5x140) (Ref #8)
8
Part #35701-MG9-950
New Genuine Part (Ref #9)
9
Part #45140-GK4-762
Гайка (Ref #10)
10
Part #45423-KA4-700
PEDAL, BRAKE (Ref #11)
11
Part #46500-MJT-E00
Rubber, pedal (Ref #12)
12
Part #46502-MJT-E00
COLLAR, BRAKE PIVOT (Ref #13)
13
Part #46520-MJT-E00
BOLT, FLANGE (6X20) (Ref #14)
14
Part #90127-MJT-E00
BOLT, FLANGE (6X34) (Ref #15)
15
Part #90149-MJT-E00
BAR, CHANGE (220MM) (Ref #16)
16
Part #90165-MJT-E00
BAR, CHANGE (204MM) (Ref #16)
16
Part #90166-MJT-E00
Washer, special, 8mm (Ref #17)
17
Part #90443-GC8-000
New Genuine Part (Ref #18)
18
Part #90502-MGP-D90
Nut, hex. (6mm) (Ref #19)
19
Part #94002-060200S
Гайка (Ref #20)
20
Part #94050-06000
E-RING (Ref #21)
21
Part #94540-06010
