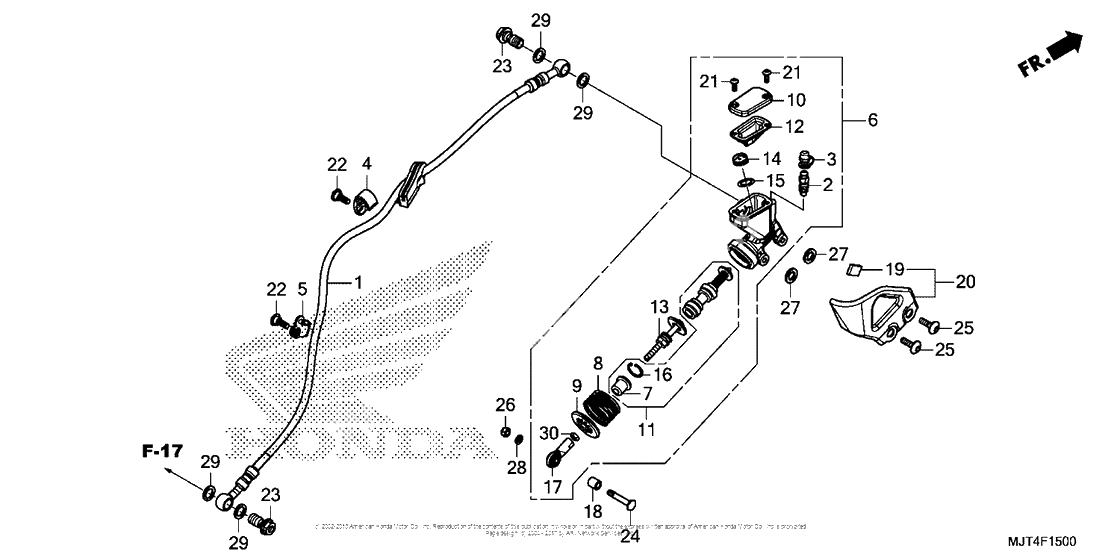

Задний тормозной цилиндр
Задний тормозной цилиндр
Hose, rr. brake (Ref #1)
1
Part #43310-MJT-E01
Болт (Ref #2)
2
Part #43352-568-003
CAP (Ref #3)
3
Part #43353-461-771
Guide a, rr. (Ref #4)
4
Part #43451-MJT-E00
Guide b, rr. (Ref #5)
5
Part #43452-MJT-E00
Master cylinder, rr. (Ref #6)
6
Part #43500-MJT-E01
Ботинок (Ref #7)
7
Part #43504-MB2-006
Spring, return (Ref #8)
8
Part #43508-MJT-E01
SEAT, SPRING (Ref #9)
9
Part #43509-MJT-E01
Cap, master cylinder (Ref #10)
10
Part #43513-MJT-E01
PISTON SET (Ref #11)
11
Part #43520-MJT-E01
DIAPHRAGM (Ref #12)
12
Part #43521-MJT-E01
Rod, push (Ref #13)
13
Part #43530-MJT-E01
Сепаратор (Ref #14)
14
Part #45518-MEN-J01
RING (Ref #15)
15
Part #45523-KA3-731
Circlip (Ref #16)
16
Part #46182-MEL-D21
ROD END, RR. (Ref #17)
17
Part #46505-MJT-E01
Collar, rr. (Ref #18)
18
Part #46511-MJT-E00
CUSHION, STEP GUARD (Ref #19)
19
Part #50611-MJT-E00
GUARD, RR. *TCLEAR* (Ref #20)
20
Part #50620-MJT-E00ZA
Screw (4x12) (Ref #21)
21
Part #90116-MEC-006
Screw, pan (5x16) (Ref #22)
22
Part #90139-MJT-E00
BOLT, OIL (10X20) (Ref #23)
23
Part #90141-MJT-E00
BOLT, HEX. (5X31) (Ref #24)
24
Part #90147-MJT-E00
Bolt, socket (5x18) (Ref #25)
25
Part #90148-MJT-E00
Nut, hex., 5mm (Ref #26)
26
Part #90302-435-761
WASHER (Ref #27)
27
Part #90515-MJT-E00
Washer, rr. (Ref #28)
28
Part #90518-MJT-E00
Шайба (Ref #29)
29
Part #90545-300-000
Гайка (Ref #30)
30
Part #94002-050-000-S
