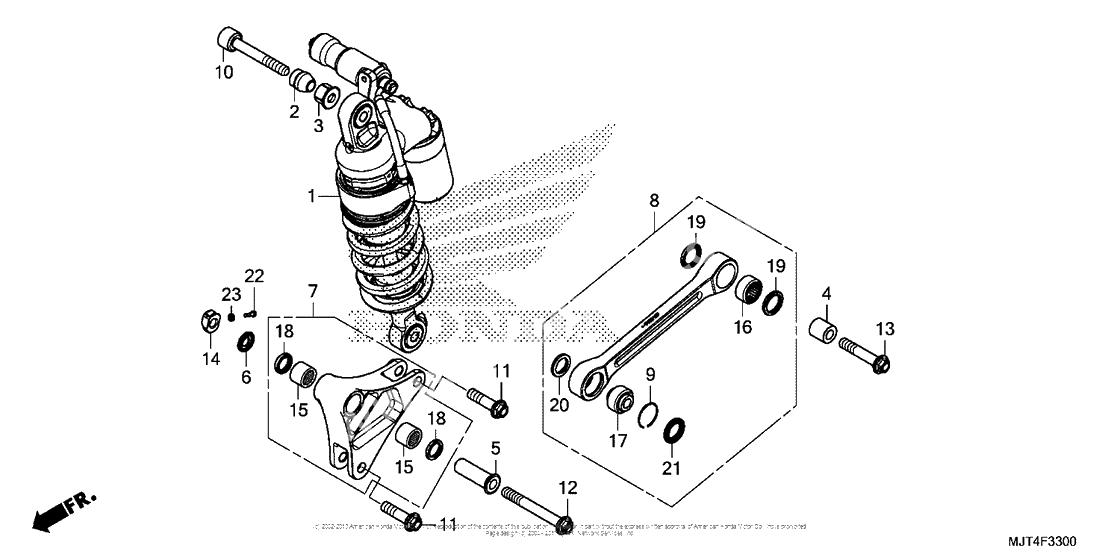

Задний амортизатор
Задний амортизатор
Cushion assy., rr. (Ref #1)
1
Part #52400-MJT-E01
COLLAR A, RR. SHOCK (Ref #2)
2
Part #52431-MJT-E00
COLLAR B, RR. SHOCK (Ref #3)
3
Part #52432-MJT-E00
Collar d (Ref #4)
4
Part #52462-KSE-000
Collar, cushion arm (Ref #5)
5
Part #52462-MJT-E00
CAP, LINK COLLAR (Ref #6)
6
Part #52463-MJT-E00
Arm sub-assy. (Ref #7)
7
Part #52465-MJT-E00
Rod sub-assy. (Ref #8)
8
Part #52475-MJT-E00
Кольцо (Ref #9)
9
Part #52487-KA4-831
BOLT (UPPER) (10X72) (Ref #10)
10
Part #90114-MJT-E00
BOLT, FLANGE (10X38) (Ref #11)
11
Part #90115-MJT-E00
BOLT, FLANGE (10X83) (Ref #12)
12
Part #90116-MJT-E00
BOLT, FLANGE (10X54) (Ref #13)
13
Part #90117-MJT-E00
NUT A, LINK (Ref #14)
14
Part #90306-MJT-E00
BEARING (15X21X16) (Ref #15)
15
Part #91051-MJT-E01
Bearing (19x26x13) (Ref #16)
16
Part #91074-KRN-711
Bearing (10) (Ref #17)
17
Part #91075-MBR-721
DUST SEAL (15X21X3) (Ref #18)
18
Part #91251-MJT-E01
Dust seal (19x26x3) (Ref #19)
19
Part #91351-KSE-003
Dust seal, shock (Ref #20)
20
Part #91351-KZ3-731
Кольцо (Ref #21)
21
Part #91351-MAC-671
Screw-washer, 3x12 (Ref #22)
22
Part #93892-030-120-0
Washer, plain, 3mm (Ref #23)
23
Part #9410103000
