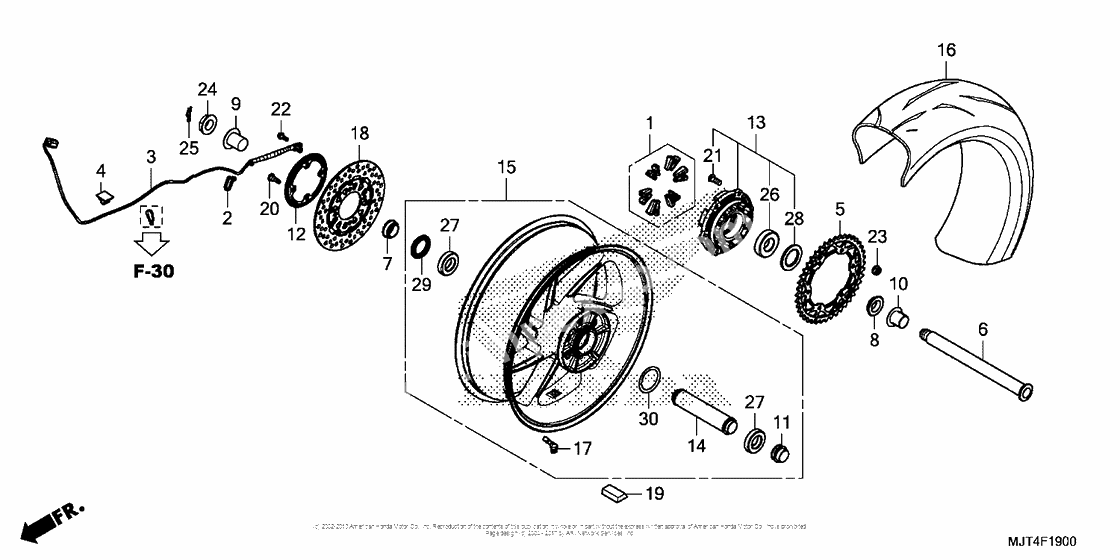

Заднее колесо
Заднее колесо
Damper set, wheel (Ref #1)
1
Part #06410-MJT-E00
Band (black 3.5x140) (Ref #2)
2
Part #35701-MG9-950
Sensor, rr. (Ref #3)
3
Part #38510-MJT-E01
Clamp, cord (Ref #4)
4
Part #39210-MJT-E00
Sprocket (42t) (Ref #5)
5
Part #41202-MJT-E00
Axle, rr. wheel (Ref #6)
6
Part #42301-MJT-E01
Collar, r. rr. (Ref #7)
7
Part #42311-MJT-E00
Collar, l. rr. (Ref #8)
8
Part #42312-MJT-E00
Collar, r. rr. (Ref #9)
9
Part #42313-MJT-E00
Collar, l. rr. (Ref #10)
10
Part #42314-MJT-E00
Collar b, rr. (Ref #11)
11
Part #42326-MJT-E00
Ring, rr. pulser (Ref #12)
12
Part #42515-MJT-E00
Flange sub-assy., rr. driven (Ref #13)
13
Part #42615-MJT-E00
Collar, rr. (Ref #14)
14
Part #42620-MJT-E00
Wheel sub-assy., rr. (Ref #15)
15
Part #42650-MJT-E00
Tire, Rr. (190/55Zr17 M/c 75W) (Bs) (Ref #16)
16
Part #42711-MJT-E01
Valve, rim (Ref #17)
17
Part #42753-MJT-E01
Disk, rr. brake (Ref #18)
18
Part #43120-MJT-E01
Грузик (Ref #19)
19
Part #44729-SEA-N02
Грузик (Ref #19)
19
Part #44724-SEA-N02
Грузик (Ref #19)
19
Part #44728-SEA-N02
Грузик (Ref #19)
19
Part #44727-SEA-N02
Грузик (Ref #19)
19
Part #44726-SEA-N02
Грузик (Ref #19)
19
Part #44723-SEA-N02
Грузик (Ref #19)
19
Part #44722-SEA-N02
Грузик (Ref #19)
19
Part #44721-SEA-N02
BOLT, RR. DISK (Ref #20)
20
Part #90104-MJT-E00
BOLT (Ref #21)
21
Part #90105-MJT-E00
Bolt, flange (6x16) (Ref #22)
22
Part #90137-MJT-E00
Nut, flange, 8mm (Ref #23)
23
Part #90309-GE2-000
Nut, rr. axle (Ref #24)
24
Part #90316-MJT-E00
PIN, LOCK (18MM) (Ref #25)
25
Part #90752-MJT-E01
BEARING (30X62X16) (Ref #26)
26
Part #91052-MJT-E01
BEARING (6006UU) (Ref #27)
27
Part #91053-MJT-E01
DUST SEAL (Ref #28)
28
Part #91252-MJT-E01
DUST SEAL (Ref #29)
29
Part #91253-MJT-E01
O-ring (61x2) (Ref #30)
30
Part #91302-MA6-003
