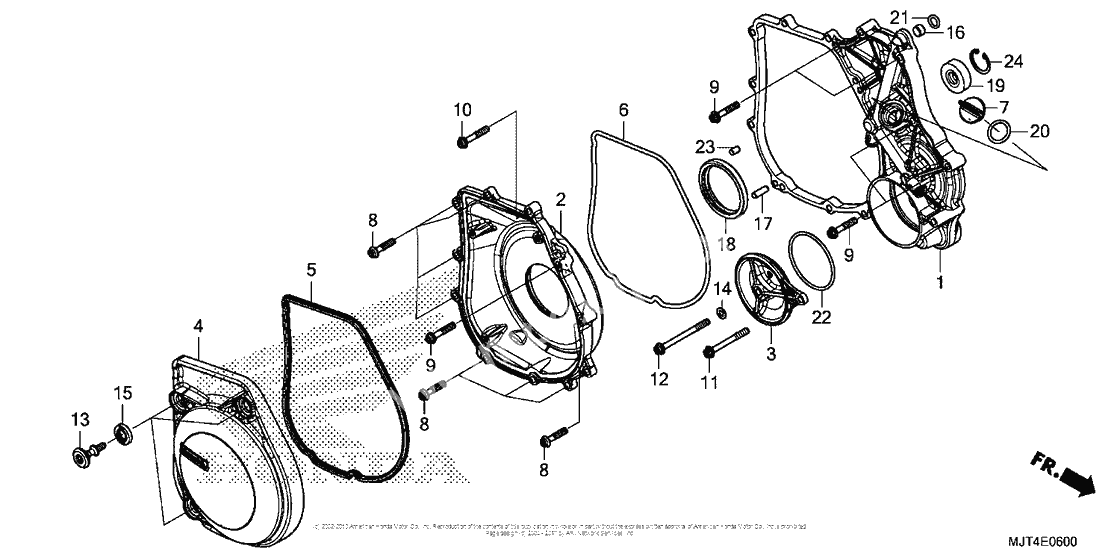

Правая крышка картера
Правая крышка картера
COVER, R. (Ref #1)
1
Part #11330-MJT-E00
Cover, clutch (Ref #2)
2
Part #11335-MJT-E00
Cover, starter (Ref #3)
3
Part #11336-MJT-E00
Cvr, clutch (outer) (Ref #4)
4
Part #11339-MJT-E00
Gasket, clutch cover (Ref #5)
5
Part #11394-MJT-E00
O-ring, clutch cover (Ref #6)
6
Part #11396-MJT-E00
Cap, oil filler (Ref #7)
7
Part #15611-KA4-710
Bolt (6x28) (Ref #8)
8
Part #90038-MJT-E00
Bolt (6x32) (Ref #9)
9
Part #90039-MJT-E00
Bolt (6x35) (Ref #10)
10
Part #90040-MJT-E00
Bolt (6x55) (Ref #11)
11
Part #90047-MJT-E00
Bolt (6x70) (Ref #12)
12
Part #90050-MJT-E00
BOLT, CLUTCH COVER (Ref #13)
13
Part #90053-MJT-E00
Шайба (Ref #14)
14
Part #90463-ML7-000
Rubber, setting (Ref #15)
15
Part #90543-MV9-670
PIN, DOWEL (11X7) (Ref #16)
16
Part #90703-MJT-E00
Установочный штифт (Ref #17)
17
Part #91101-KF0-000
OIL SEAL (54X66X8.5) (Ref #18)
18
Part #91201-MJT-E01
OIL SEAL (10X25X5.7) (Ref #19)
19
Part #91203-MJT-E01
Прокладка (Ref #20)
20
Part #91307-KF0-003
O-RING (10.6X1.6) (Ref #21)
21
Part #91314-MJT-E00
O-RING (71X1.9) (Ref #22)
22
Part #91319-MJT-E00
Pin b (Ref #23)
23
Part #94302-06100
Circlip (Ref #24)
24
Part #94520-26000
