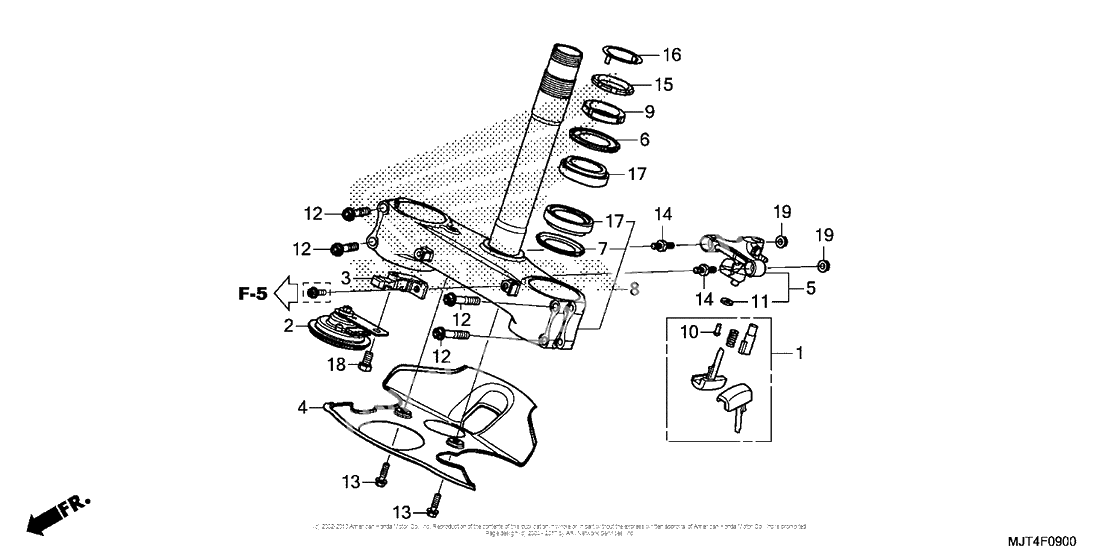

Steering stem + horn
Steering stem + horn
KEY, HANDLEBAR LOCK (Ref #1)
1
Part #35115-MJT-E01
Horn (Ref #2)
2
Part #38110-MFL-003
Stay, horn (Ref #3)
3
Part #38115-MJT-E00
COVER, COWL *TCLEAR* (Ref #4)
4
Part #50810-MJT-E00ZA
HOLDER, HANDLE LOCK (Ref #5)
5
Part #53210-MJT-E00
DUST SEAL (Ref #6)
6
Part #53214-MJT-E01
УПЛОТНЕНИЕ ПЫЛЕНЕПРОНИЦАЕМОЕ (Ref #7)
7
Part #53214-MR7-003
Stem sub-assy., strg (Ref #8)
8
Part #53219-MJT-E00
Thread (Ref #9)
9
Part #53221-MJT-E00
Rivet (4.1mm) (Ref #10)
10
Part #53603-051-000
Шайба (Ref #11)
11
Part #53604-098-940
BOLT, FLANGE (8X38) (Ref #12)
12
Part #90112-MJT-E00
BOLT, FLANGE (6X20) (Ref #13)
13
Part #90127-MJT-E00
BOLT, HANDLE LOCK (Ref #14)
14
Part #90172-MJT-E00
Thread b (Ref #15)
15
Part #90302-MR7-000
Washer, lock (Ref #16)
16
Part #90506-MJT-E00
ПОДШИПНИК КАЧЕНИЯ (Ref #17)
17
Part #91016-MR7-003
Болт (Ref #18)
18
Part #92101-08014-0G
Гайка (Ref #19)
19
Part #94050-06080
