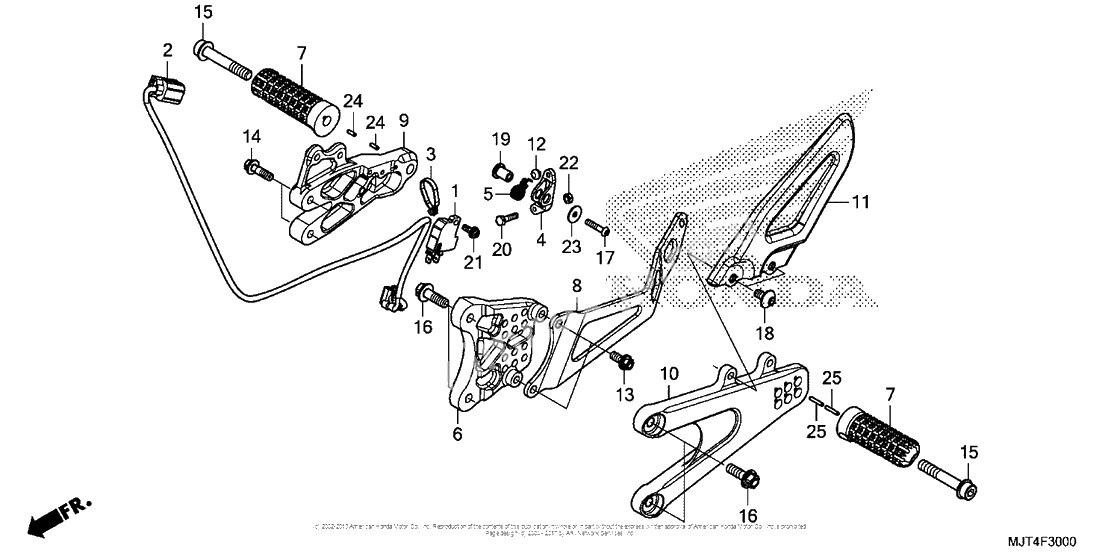

Подножки
Подножки
Switch, fr. stop (Ref #1)
1
Part #35340-MGS-D31
Sub-wire, rr. (Ref #2)
2
Part #35351-MJT-E00
Band (black 3.5x140) (Ref #3)
3
Part #35701-MG9-950
LEVER, RR. (Ref #4)
4
Part #46503-MJT-E00
Spring, rr. (Ref #5)
5
Part #46504-MJT-E00
Holder, r. step (Ref #6)
6
Part #50600-MJT-E00
Arm, step (Ref #7)
7
Part #50610-MJT-E00
STAY, HEAT PROTECTOR (Ref #8)
8
Part #50639-MJT-E00
HOLDER, R. RR. STEP (Ref #9)
9
Part #50650-MJT-E00
Holder, l. step (Ref #10)
10
Part #50700-MJT-E00
GUARD, L. *TCLEAR* (Ref #11)
11
Part #50725-MJT-E00ZA
Rubber, fuel lid stopper (Ref #12)
12
Part #60107-752-000
Bolt, flange (6x14) (Ref #13)
13
Part #90124-MJT-E00
BOLT, FLANGE (6X20) (Ref #14)
14
Part #90127-MJT-E00
Bolt, socket (8x48) (Ref #15)
15
Part #90135-MJT-E00
BOLT, FLANGE (7X22) (Ref #16)
16
Part #90143-MJT-E00
BOLT, SOCKET (4X20) (Ref #17)
17
Part #90158-MJT-E00
Bolt, socket (6x12) (Ref #18)
18
Part #90161-MJT-E00
COLLAR (Ref #19)
19
Part #90517-MJT-E00
BOLT. HEX. (4X16) (Ref #20)
20
Part #92101-040-160-G
Screw-washer (Ref #21)
21
Part #93893-040-120-7
Гайка (Ref #22)
22
Part #94001-040-700-S
Washer, plain, 4mm (Ref #23)
23
Part #9410304000
Roller (2,5x7,8) (Ref #24)
24
Part #96220-25078
Roller, 2.5x13.8 (Ref #25)
25
Part #96220-25138
