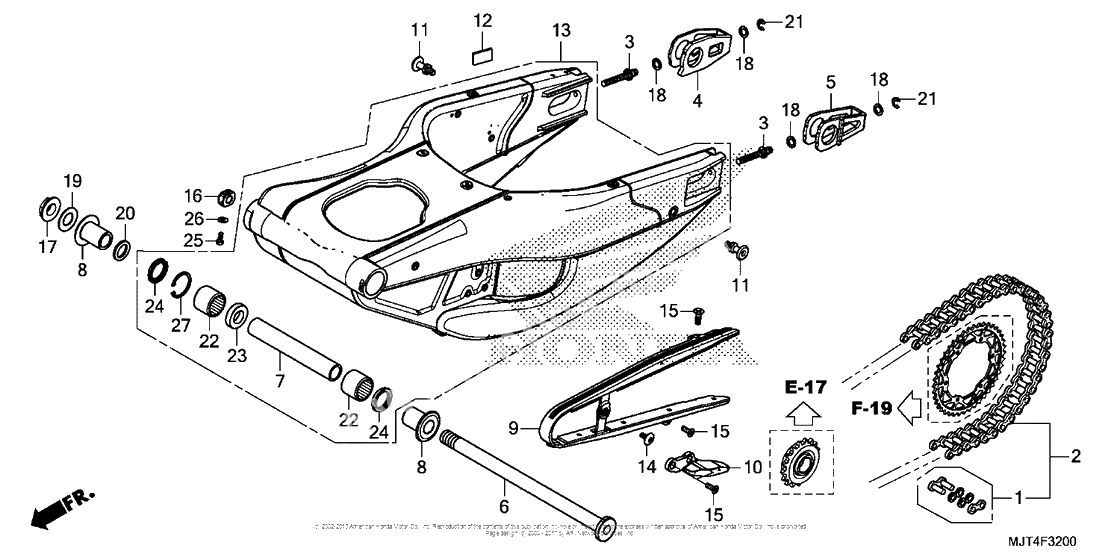

Задний рычаг (Маятник)
Задний рычаг (Маятник)
Master link (Ref #1)
1
Part #40531-MJT-E02
CHAIN, DRIVE (Ref #2)
2
Part #40540-MJT-E02
Bolt, chain adj. (Ref #3)
3
Part #40541-MJT-E00
Adjuster, r. (Ref #4)
4
Part #40543-MJT-E00
ADJUSTER, L. (Ref #5)
5
Part #40544-MJT-E00
Bolt, swingarm pivot (Ref #6)
6
Part #52101-MJT-E01
Colr, pivot distance (Ref #7)
7
Part #52141-MJT-E00
COLLAR, PIVOT SIDE (Ref #8)
8
Part #52142-MJT-E00
Slider, chain (Ref #9)
9
Part #52170-MJT-E00
Slider b, chain (Ref #10)
10
Part #52171-MJT-E00
BOLT, SWINGARM STAND (Ref #11)
11
Part #52181-MJT-E00
PROTECTOR, SWINGARM (Ref #12)
12
Part #52191-MJT-E00
Swingarm sub-assy. (Ref #13)
13
Part #52200-MJT-E00
SCREW (6X15) (Ref #14)
14
Part #90113-MJT-E00
SCREW, FLAT (5X14) (Ref #15)
15
Part #90119-MJT-E00
NUT C, SWINGARM (Ref #16)
16
Part #90304-MJT-E00
Nut, swingarm pivot (Ref #17)
17
Part #90309-MJT-E00
WASHER (Ref #18)
18
Part #90508-MJT-E00
WASHER (20X37X1.6) (Ref #19)
19
Part #90514-MJT-E00
SHIM F (0.6) (Ref #20)
20
Part #90526-MJT-E00
SHIM E (0.5) (Ref #20)
20
Part #90525-MJT-E00
SHIM C (0.3) (Ref #20)
20
Part #90523-MJT-E00
SHIM D (0.4) (Ref #20)
20
Part #90524-MJT-E00
SHIM B (0.2) (Ref #20)
20
Part #90522-MJT-E00
SHIM A (0.1) (Ref #20)
20
Part #90521-MJT-E00
E-ring (8mm) (Ref #21)
21
Part #90601-148-000
BEARING (28X37X30) (Ref #22)
22
Part #91071-MJT-E01
Bearing (20x37x9) (Ref #23)
23
Part #91072-MR7-003
Dust seal (28x37x4) (Ref #24)
24
Part #91202-MR7-003
Screw-washer (3x8) (Ref #25)
25
Part #93892-030-080-0
Washer, plain, 3mm (Ref #26)
26
Part #9410103000
Кольцо стопорное (Ref #27)
27
Part #9452037000
