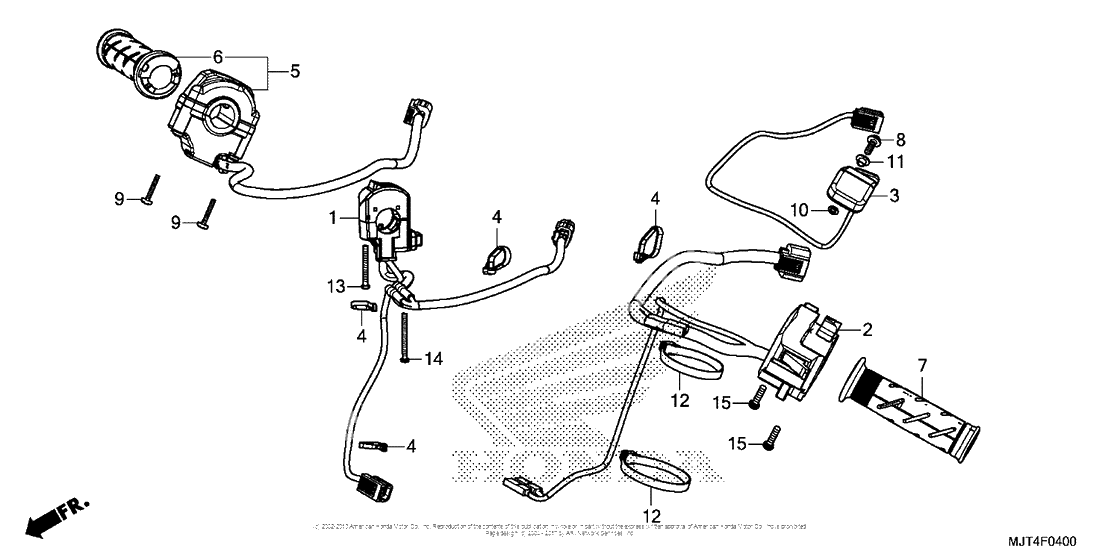

Switch
Switch
Switch assy., main (Ref #1)
1
Part #35130-MJT-E01
Switch, turn signal (Ref #2)
2
Part #35200-MJT-E01
SWITCH ASSY., MODE (Ref #3)
3
Part #35360-MJT-E01
Band (black 3.5x140) (Ref #4)
4
Part #35701-MG9-950
SENSOR ASSY., GRIP (Ref #5)
5
Part #37970-MJT-E01
Grip assy., throttle (Ref #6)
6
Part #53140-MJT-E01
Bolt, socket (5x14) (Ref #7)
7
Part #90153-MJT-E00
Screw, pan (5x35) (Ref #9)
9
Part #90169-MJT-E00
Washer, thrust (5mm) (Ref #10)
10
Part #90501-MJT-E00
COLLAR, SWITCH (Ref #11)
11
Part #90519-MJT-E00
BAND (3.6X281) (Ref #12)
12
Part #91642-MJT-E00
Screw, pan, 4x32 (Ref #13)
13
Part #93500-040320G
Screw, pan (4x45) (Ref #14)
14
Part #93500-040450G
Болт (Ref #15)
15
Part #93500-050-200-G
