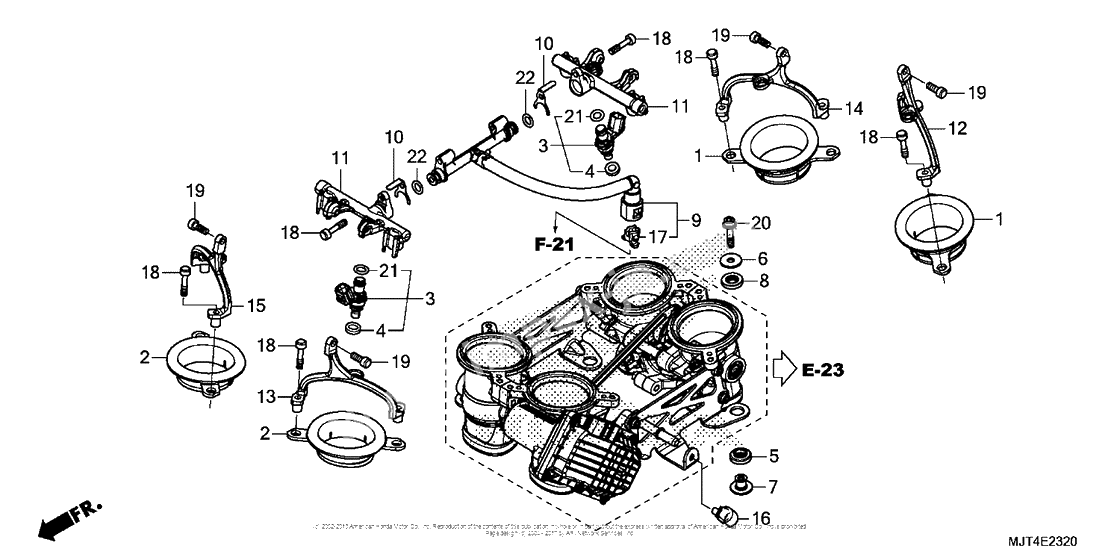

Throttle body (component parts)
Throttle body (component parts)
Funnel, rr. air (Ref #1)
1
Part #16141-MJT-E00
Funnel, fr. air (Ref #2)
2
Part #16142-MJT-E00
Injector assy., fuel (Ref #3)
3
Part #16460-MJT-E01
Ring, seal (Ref #4)
4
Part #16472-KPC-D50
Rubber a, mounting (Ref #5)
5
Part #16481-MJT-E00
WASHER, MOUNT (Ref #6)
6
Part #16482-MJT-E00
COLLAR, MOUNTING (Ref #7)
7
Part #16483-MJT-E00
Rubber b, mounting (Ref #8)
8
Part #16486-MJT-E00
Hose a, fuel feed (Ref #9)
9
Part #16527-MJT-E01
Washer, tongued (Ref #10)
10
Part #16631-MJT-E00
PIPE, FUEL (UPPER) (Ref #11)
11
Part #16640-MJT-E00
STAY, L. RR. (UPPER) (Ref #12)
12
Part #16671-MJT-E00
STAY, L. FR. (UPPER) (Ref #13)
13
Part #16672-MJT-E00
STAY, R. RR. (UPPER) (Ref #14)
14
Part #16673-MJT-E00
STAY, R. FR. (UPPER) (Ref #15)
15
Part #16674-MJT-E00
Хомут в топливопровод (Ref #16)
16
Part #16896-ZY9-003
RETAINER (Ref #17)
17
Part #17711-MGE-003
Bolt, socket (5x22) (Ref #18)
18
Part #90061-MJT-E00
Bolt, socket (5x14) (Ref #19)
19
Part #90064-MJT-E00
Bolt, socket (6x25) (Ref #20)
20
Part #90092-MJT-E00
New Genuine Part (Ref #21)
21
Part #91301-GGL-J01
Прокладка (Ref #22)
22
Part #91301-PLC-000
