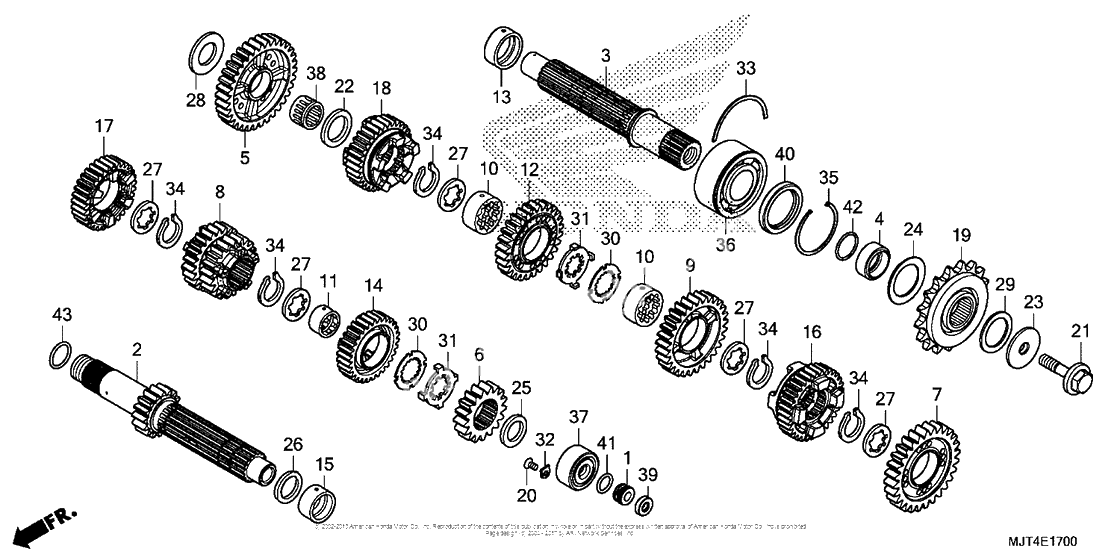

Трансмиссия
Трансмиссия
ORIFICE, MAIN AXIS (Ref #1)
1
Part #15533-MJT-E00
Mainshaft (16t) (Ref #2)
2
Part #23210-MJT-E00
Countershaft (Ref #3)
3
Part #23220-MJT-E00
Collar, countershaft (Ref #4)
4
Part #23225-MJT-E00
Gear (34t) (Ref #5)
5
Part #23421-MJT-E00
Gear (17t) (Ref #6)
6
Part #23431-MJT-E00
Gear (28t) (Ref #7)
7
Part #23441-MJT-E00
GEAR (19T/23T) (Ref #8)
8
Part #23451-MJT-E00
Gear (26t) (Ref #9)
9
Part #23461-MJT-E00
Colr, spline (30x11) (Ref #10)
10
Part #23462-MAT-000
Colr, spline (30x14) (Ref #11)
11
Part #23463-MCA-000
Gear (28t) (Ref #12)
12
Part #23481-MJT-E00
Collar (30x33x12) (Ref #13)
13
Part #23482-MGE-000
Gear (30t) (Ref #14)
14
Part #23491-MJT-E00
Collar (30x33x12.8) (Ref #15)
15
Part #23493-MGE-D00
Gear (33t) (Ref #16)
16
Part #23501-MJT-E00
Gear (31t) (Ref #17)
17
Part #23511-MJT-E00
Gear (32t) (Ref #18)
18
Part #23521-MJT-E00
Sprocket (17t) (Ref #19)
19
Part #23803-MJT-E00
Screw (6x12) (Ref #20)
20
Part #90003-KRN-670
BOLT, DRIVE SPROCKET (Ref #21)
21
Part #90009-MJT-E00
Washer, thrust, 24mm (Ref #22)
22
Part #90402-HA5-000
WASHER (11X40X5) (Ref #23)
23
Part #90405-MJT-E00
WASHER (32MM) (Ref #24)
24
Part #90406-MJT-E00
Washer,thrust 22m (Ref #25)
25
Part #90451-KCR-000
Шайба (Ref #26)
26
Part #90451-KPT-900
Шайба (Ref #27)
27
Part #90452-MAT-000
Washer b (22mm) (Ref #28)
28
Part #90455-ML7-000
Шайба (Ref #29)
29
Part #90457-HN2-000
Шайба (Ref #30)
30
Part #90463-MAT-000
ШАЙБА СТОПОРНАЯ (Ref #31)
31
Part #90464-MAT-000
Stopper, bearing (Ref #32)
32
Part #90473-MJT-E00
SET-RING (66MM) (Ref #33)
33
Part #90603-MJT-E00
Кольцо стопорное (Ref #34)
34
Part #90604-MM5-000
CIRCLIP, OIL SEAL (Ref #35)
35
Part #90605-MJT-E00
BEARING, BALL (5306) (Ref #36)
36
Part #91008-MJT-E01
BEARING (22X38X18) (Ref #37)
37
Part #91024-MJT-E01
Bearing (24x28x10) (Ref #38)
38
Part #91026-MEL-003
Oil seal (8x18x5) (Ref #39)
39
Part #91204-MJT-E01
OIL SEAL (38X50X7) (Ref #40)
40
Part #91207-MJT-E01
Прокладка (Ref #41)
41
Part #91301-GR0-004
O-RING (29.7X1.9) (Ref #42)
42
Part #91316-MJT-E00
O-ring, 22.5x2.4 (Ref #43)
43
Part #91360-VD6-003
