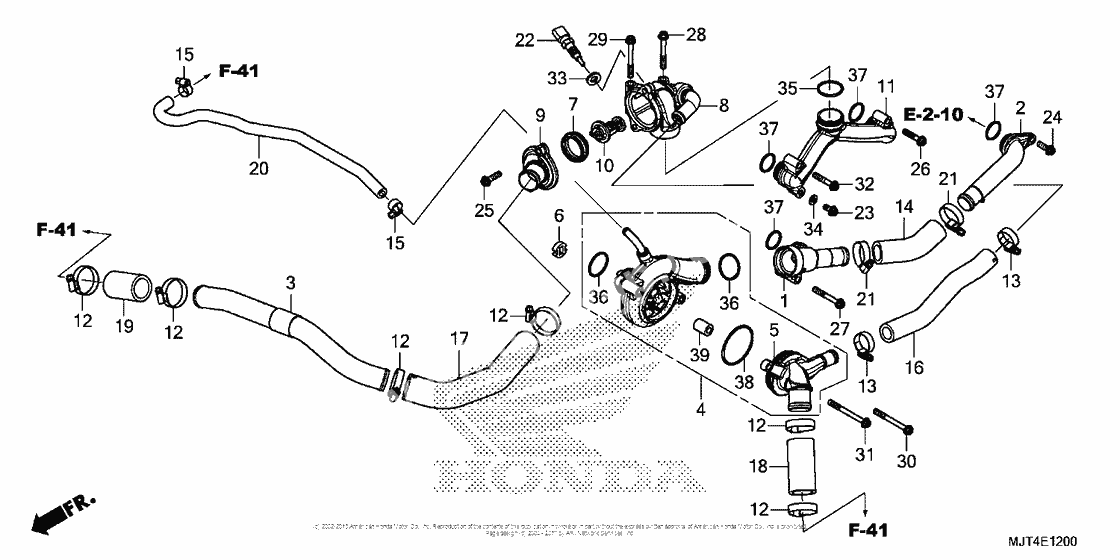

Водяной насос
Водяной насос
JOINT, FR. WATER (Ref #1)
1
Part #12511-MJT-E00
JOINT, RR. WATER (Ref #2)
2
Part #12513-MJT-E00
Pipe, radiator (Ref #3)
3
Part #19060-MJT-E00
WATER PUMP ASSY. (Ref #4)
4
Part #19200-MJT-E00
Cover, water pump (Ref #5)
5
Part #19221-MJT-E00
COUPLING B, OLDHAM (Ref #6)
6
Part #19242-MJT-E00
Rubber, thermostat (Ref #7)
7
Part #19305-KV3-010
Case, thermostat (Ref #8)
8
Part #19310-MJT-E00
Cover, thermostat (Ref #9)
9
Part #19315-MJT-E00
Thermostat (Ref #10)
10
Part #19320-MFJ-D01
Joint, water (Ref #11)
11
Part #19502-MJT-E00
Clamp (35mm) (Ref #12)
12
Part #19504-MGP-000
Clamp a, water hose (Ref #13)
13
Part #19505-KS6-700
HOSE, WATER (Ref #14)
14
Part #19505-MJT-E00
Clamp, radiator hose (Ref #15)
15
Part #19507-MAT-000
Hose, bypass (Ref #16)
16
Part #19507-MJT-E00
Hose, radiator (Ref #17)
17
Part #19511-MJT-E00
Hose, radiator (Ref #18)
18
Part #19513-MJT-E00
Hose c, water (Ref #19)
19
Part #19514-MJT-E00
HOSE, AIR BREATHER (Ref #20)
20
Part #19515-MJT-E00
Clamp, hose (22-29) (Ref #21)
21
Part #19517-ML7-691
Sensor assy., water (Ref #22)
22
Part #37870-KRJ-901
Bolt (6x12) (Ref #23)
23
Part #90031-MJT-E00
Bolt (6x18) (Ref #24)
24
Part #90034-MJT-E00
Bolt (6x22) (Ref #25)
25
Part #90036-MJT-E00
Bolt (6x28) (Ref #26)
26
Part #90038-MJT-E00
Bolt (6x42) (Ref #27)
27
Part #90043-MJT-E00
Bolt (6x45) (Ref #28)
28
Part #90044-MJT-E00
BOLT (6X52) (Ref #29)
29
Part #90046-MJT-E00
Bolt (6x55) (Ref #30)
30
Part #90047-MJT-E00
Bolt (6x60) (Ref #31)
31
Part #90048-MJT-E00
Bolt (6x32) (Ref #32)
32
Part #90065-MJT-E00
Шайба (Ref #33)
33
Part #90454-MC7-000
Шайба (Ref #34)
34
Part #90463-ML7-000
O-ring, 27x2.0 (Ref #35)
35
Part #91301-028-000
Прокладка (Ref #36)
36
Part #91301-PHM-003
Прокладка (Ref #37)
37
Part #91304-GB0-910
Прокладка (Ref #38)
38
Part #91311-KE8-000
Dowel pin (Ref #39)
39
Part #94301-08100
