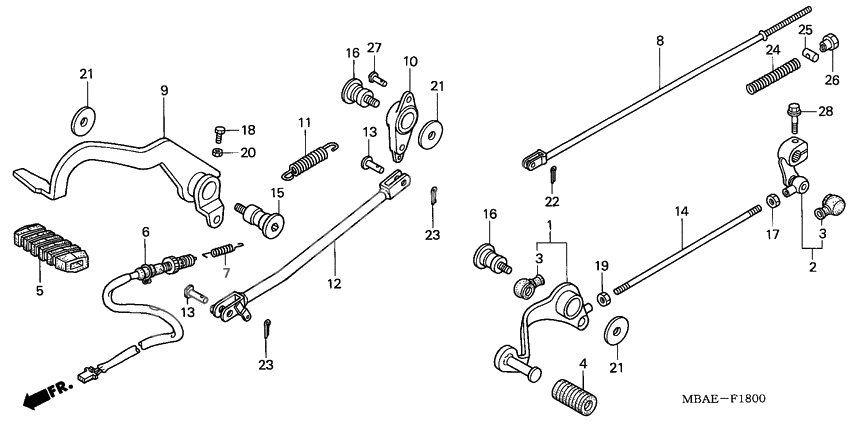

Brake pedal assy
Brake pedal assy
Pedal, gearshift (Ref #1)
1
Part #24705-MBA-670
Pedal, gearshift (Ref #1)
1
Part #24705-MBA-610
Arm, change (Ref #2)
2
Part #24710-MBA-670
Arm, change (Ref #2)
2
Part #24710-MBA-610
Пыльник (Ref #3)
3
Part #24724-422-000
Пыльник (Ref #3)
3
Part #24724-422-000
Пыльник (Ref #3)
3
Part #24724-422-000
Пыльник (Ref #3)
3
Part #24724-422-000
Rubber, change pedal (Ref #4)
4
Part #24781-KR3-770
Rubber, pedal (Ref #5)
5
Part #24781-MBA-000
Switch, rr. stop (Ref #6)
6
Part #35350-MBA-610
Spring, stop switch (Ref #7)
7
Part #35357-GS3-000
Rod, rr. brake (Ref #8)
8
Part #43451-MBA-000
Pedal, rr. brake (Ref #9)
9
Part #46501-MBA-670
Pedal, rr. brake (Ref #9)
9
Part #46501-MBA-610
Arm, rr. (Ref #10)
10
Part #46510-MBA-300
Spring, brake pedal (Ref #11)
11
Part #46511-KR6-000
Rod, rr. (Ref #12)
12
Part #46540-MBA-000
PIN (Ref #13)
13
Part #46545-MBA-000
PIN (Ref #13)
13
Part #46545-MBA-000
PIN (Ref #13)
13
Part #46545-MBA-000
PIN (Ref #13)
13
Part #46545-MBA-000
Bolt, tie rod (Ref #14)
14
Part #90065-MBA-000
Bolt a, pedal pivot (Ref #15)
15
Part #90115-MBA-000
Bolt b, pedal pivot (Ref #16)
16
Part #90116-MBA-000
Bolt b, pedal pivot (Ref #16)
16
Part #90116-MBA-000
Bolt b, pedal pivot (Ref #16)
16
Part #90116-MBA-000
Bolt b, pedal pivot (Ref #16)
16
Part #90116-MBA-000
Nut, governor arm fixing (left hand thread) (Ref #17)
17
Part #90201-700-000
Bolt,hex.,6x16 (Ref #18)
18
Part #92101-06016-0G
Nut, hex., 6mm (Ref #19)
19
Part #94001-060200S
Гайка (Ref #20)
20
Part #94002-060-700-S
PIN (Ref #22)
22
Part #94201-20120
PIN (Ref #23)
23
Part #94201-20150
PIN (Ref #23)
23
Part #94201-20150
PIN (Ref #23)
23
Part #94201-20150
PIN (Ref #23)
23
Part #94201-20150
Spring a, brake rod (Ref #24)
24
Part #9501473100
Joint b, brake arm (Ref #25)
25
Part #9501532001
Nut b, brake rod adjusting (Ref #26)
26
Part #9501542000
Pin, joint (Ref #27)
27
Part #9501553000
BOLT (Ref #28)
28
Part #95701-060-200-0
-
1790201-700-000
Nut, governor arm fixing (left hand thread)
1Доступно: Нет в наличии
