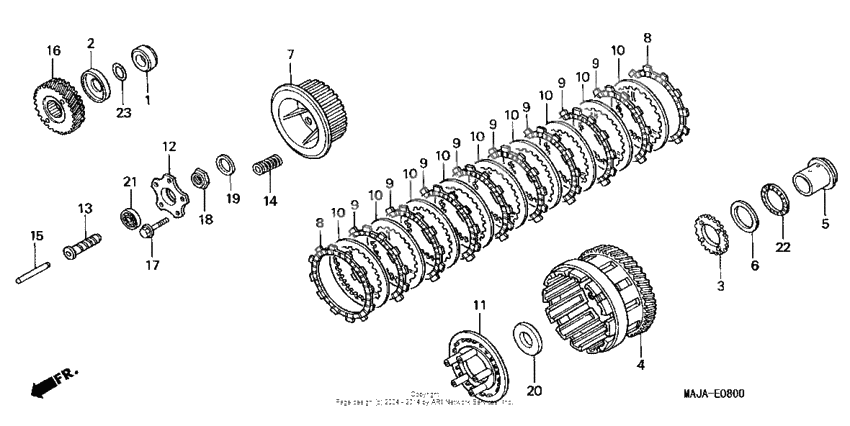

Сцепление
Сцепление
Collar (26x42x135) (Ref #1)
1
Part #13440-MT3-000
Stopper, circlip (Ref #2)
2
Part #13445-MT3-000
Звездочка (Ref #3)
3
Part #15131-MT3-000
Clutch outer (Ref #4)
4
Part #22100-MY3-000
Colr, clutch (outer) (Ref #5)
5
Part #22116-MT3-000
Шайба (Ref #6)
6
Part #22118-MT3-000
Center, clutch (Ref #7)
7
Part #22120-MT3-000
Disk, cl friction (Ref #8)
8
Part #22201-MA7-000
Disk, cl friction (Ref #8)
8
Part #22201-MA7-000
Disk, cl friction (Ref #8)
8
Part #22201-MA7-000
Disk, cl friction (Ref #8)
8
Part #22201-MA7-000
Plate, clu press (Ref #11)
11
Part #22350-MT3-000
Plate, clutch lifter (Ref #12)
12
Part #22361-MT3-000
Piece, clutch joint (Ref #13)
13
Part #22366-MAJ-G00
Пружина (Ref #14)
14
Part #22401-MT3-000
Rod, clutch lifter (Ref #15)
15
Part #22851-MN5-010
Шестерня, ведущая (Ref #16)
16
Part #23100-MT3-000
Болт (Ref #17)
17
Part #90038-MT3-000
Nut, lock (22mm) (Ref #18)
18
Part #90231-MM5-000
Шайба (Ref #19)
19
Part #90432-MM5-000
Шайба (Ref #20)
20
Part #90459-MT3-000
Bearing (6201) (Ref #21)
21
Part #91003-GE0-712
BEARING (Ref #22)
22
Part #91014-PA9-003
Прокладка (Ref #23)
23
Part #91308-MT3-003
