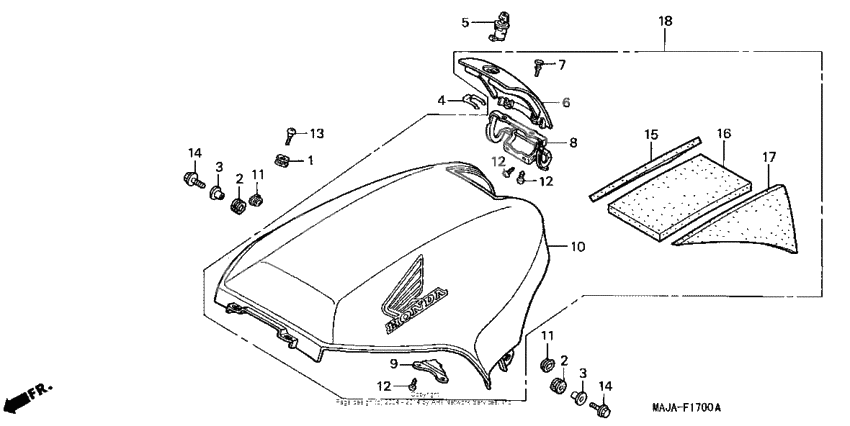

Shelter
Shelter
RUBBER (Ref #1)
1
Part #17227-GS3-000
Rubber, fr. fender mounting (Ref #2)
2
Part #61103-357-000
Rubber, fr. fender mounting (Ref #2)
2
Part #61103-357-000
Rubber, fr. fender mounting (Ref #2)
2
Part #61103-357-000
Rubber, fr. fender mounting (Ref #2)
2
Part #61103-357-000
Collar, fr. fender (Ref #3)
3
Part #61104-428-010
Collar, fr. fender (Ref #3)
3
Part #61104-428-010
Collar, fr. fender (Ref #3)
3
Part #61104-428-010
Collar, fr. fender (Ref #3)
3
Part #61104-428-010
Пружина (Ref #4)
4
Part #75581-673-000
Lock assy., fuel lid (Ref #5)
5
Part #77232-GBL-772
Lid *r114cu* (Ref #6)
6
Part #83131-MT3-000ZQ
Rubber, shelter lid (Ref #7)
7
Part #83132-MN5-000
Hinge, shelter (Ref #8)
8
Part #83140-MT3-000
Плата замка (Ref #9)
9
Part #83143-MT3-000
Уплотнение (Ref #11)
11
Part #83551-MA6-000
Уплотнение (Ref #11)
11
Part #83551-MA6-000
Уплотнение (Ref #11)
11
Part #83551-MA6-000
Уплотнение (Ref #11)
11
Part #83551-MA6-000
Screw (6x19) (Ref #13)
13
Part #90104-MN4-000
BOLT (Ref #14)
14
Part #95701-060-250-0
BOLT (Ref #14)
14
Part #95701-060-250-0
BOLT (Ref #14)
14
Part #95701-060-250-0
BOLT (Ref #14)
14
Part #95701-060-250-0
Mat a, shelter (Ref #15)
15
Part #83151-MAJ-G00
Mat b, r. shelter (Ref #16)
16
Part #83152-MAJ-G00
Mat b, l. shelter (Ref #17)
17
Part #83153-MAJ-G00
Shelter (type13) (Ref #18)
18
Part #83160-MAJ-G70ZA
-
361104-428-000
Collar, fr. fender
2Replaced by 61104-428-010 Доступно: Нет в наличии
