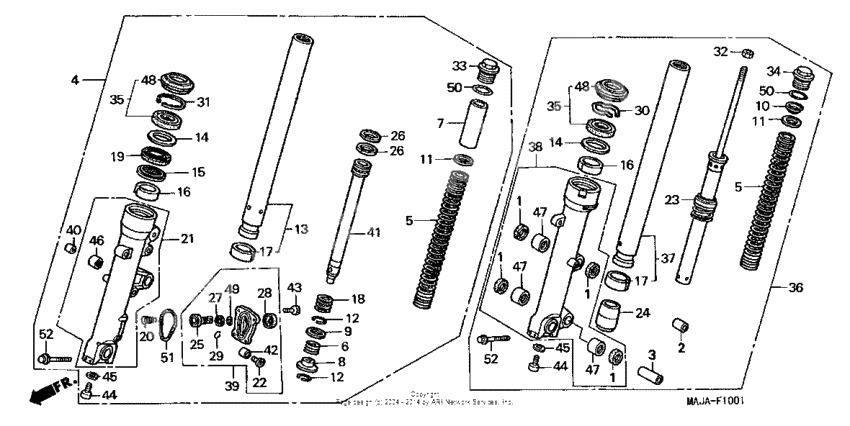

Front fork (2)
Front fork (2)
Collar, conn rod (Ref #2)
2
Part #45442-MZ2-000
Collar, pivot (Ref #3)
3
Part #45452-MZ2-000
Fork assy., r. fr. (Ref #4)
4
Part #51400-MAJ-G41
Spring, fr. fork (Ref #5)
5
Part #51401-MAJ-G41
Spring, fr. fork (Ref #5)
5
Part #51401-MAJ-G41
Spring, fr. fork (Ref #5)
5
Part #51401-MAJ-G41
Spring, fr. fork (Ref #5)
5
Part #51401-MAJ-G41
Spring, oil lock (Ref #6)
6
Part #51402-MB7-611
Collar, spring (Ref #7)
7
Part #51402-MZ1-003
Valve, oil lock (Ref #8)
8
Part #51403-MB7-611
Пружина (Ref #9)
9
Part #51404-MB7-611
Пружина (Ref #10)
10
Part #51404-MR7-003
Пружина (Ref #11)
11
Part #51405-KA4-711
Пружина (Ref #11)
11
Part #51405-KA4-711
Пружина (Ref #11)
11
Part #51405-KA4-711
Пружина (Ref #11)
11
Part #51405-KA4-711
Кольцо (Ref #12)
12
Part #51405-MB7-611
Кольцо (Ref #12)
12
Part #51405-MB7-611
Кольцо (Ref #12)
12
Part #51405-MB7-611
Кольцо (Ref #12)
12
Part #51405-MB7-611
Pipe, fr. fork (Ref #13)
13
Part #51410-MAJ-G41
Ring, back-up (Ref #14)
14
Part #51412-KA4-711
Ring, back-up (Ref #14)
14
Part #51412-KA4-711
Ring, back-up (Ref #14)
14
Part #51412-KA4-711
Ring, back-up (Ref #14)
14
Part #51412-KA4-711
Ring, back-up (Ref #15)
15
Part #51412-MAJ-G41
Bush, guide (Ref #16)
16
Part #51414-MN1-671
Bush, guide (Ref #16)
16
Part #51414-MN1-671
Bush, guide (Ref #16)
16
Part #51414-MN1-671
Bush, guide (Ref #16)
16
Part #51414-MN1-671
Bush, slider (Ref #17)
17
Part #51415-KS6-831
Bush, slider (Ref #17)
17
Part #51415-KS6-831
Bush, slider (Ref #17)
17
Part #51415-KS6-831
Bush, slider (Ref #17)
17
Part #51415-KS6-831
Пружина (Ref #18)
18
Part #51416-KA4-831
Прокладка (Ref #19)
19
Part #51417-MAJ-G41
Spring, piston (Ref #20)
20
Part #51418-MAJ-G41
Case, r. (lower) (Ref #21)
21
Part #51421-MAJ-G41
Collar, piston (Ref #22)
22
Part #51423-MJ0-003
Damper, fr. (Ref #23)
23
Part #51430-MAJ-G41
Piece, oil lock (Ref #24)
24
Part #51432-MS2-003
PISTON (Ref #25)
25
Part #51436-MT3-003
Кольцо поршневое (Ref #26)
26
Part #51437-KA4-711
Кольцо поршневое (Ref #26)
26
Part #51437-KA4-711
Кольцо поршневое (Ref #26)
26
Part #51437-KA4-711
Кольцо поршневое (Ref #26)
26
Part #51437-KA4-711
Rubber, stopper (Ref #27)
27
Part #51441-ML7-013
Boot, piston case (Ref #28)
28
Part #51442-MJ0-003
Кольцо (Ref #29)
29
Part #51445-MJ0-003
RING (Ref #30)
30
Part #51447-KA4-711
Circlip (inner) (Ref #31)
31
Part #51447-MB4-003
Nut, hex. (10mm) (Ref #32)
32
Part #51451-MAJ-G41
Bolt, fr. fork (Ref #33)
33
Part #51454-MAY-003
Bolt, fr. fork (Ref #34)
34
Part #51454-MZ1-003
Seal set, fr. fork (Ref #35)
35
Part #51490-MZ1-305
Seal set, fr. fork (Ref #35)
35
Part #51490-MZ1-305
Seal set, fr. fork (Ref #35)
35
Part #51490-MZ1-305
Seal set, fr. fork (Ref #35)
35
Part #51490-MZ1-305
Fork assy., l. fr. (Ref #36)
36
Part #51500-MAJ-G41
Pipe, l. fr. fork (Ref #37)
37
Part #51510-MAJ-G41
Case, l. (lower) (Ref #38)
38
Part #51521-MAJ-G41
Case, l. piston (Ref #39)
39
Part #51530-MAJ-G41
Collar, l. fr. (Ref #40)
40
Part #51536-ML7-000
Pipe b, seat (Ref #41)
41
Part #51540-MAJ-G41
Bush, rubber (Ref #42)
42
Part #51545-MJ0-003
Bolt (5x13.5) (Ref #43)
43
Part #90116-ML7-003
Bolt, socket (8mm) (Ref #44)
44
Part #90116-383-721
Bolt, socket (8mm) (Ref #44)
44
Part #90116-383-721
Bolt, socket (8mm) (Ref #44)
44
Part #90116-383-721
Bolt, socket (8mm) (Ref #44)
44
Part #90116-383-721
Шайба (Ref #45)
45
Part #90544-283-000
Шайба (Ref #45)
45
Part #90544-283-000
Шайба (Ref #45)
45
Part #90544-283-000
Шайба (Ref #45)
45
Part #90544-283-000
Bearing (1422) (Ref #46)
46
Part #91071-ML7-003
DUST SEAL (Ref #48)
48
Part #91254-ML3-791
DUST SEAL (Ref #48)
48
Part #91254-ML3-791
DUST SEAL (Ref #48)
48
Part #91254-ML3-791
DUST SEAL (Ref #48)
48
Part #91254-ML3-791
Прокладка (Ref #49)
49
Part #91304-ML7-003
Прокладка (Ref #50)
50
Part #91356-KA4-711
Прокладка (Ref #50)
50
Part #91356-KA4-711
Прокладка (Ref #50)
50
Part #91356-KA4-711
Прокладка (Ref #50)
50
Part #91356-KA4-711
Болт (Ref #52)
52
Part #96300-0804507
Болт (Ref #52)
52
Part #96300-0804507
Болт (Ref #52)
52
Part #96300-0804507
Болт (Ref #52)
52
Part #96300-0804507
