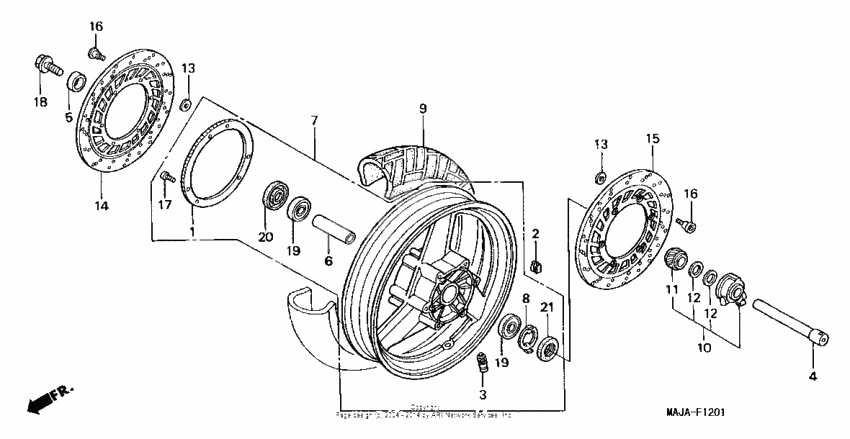

Front wheel (2)
Front wheel (2)
Ring, pulser (Ref #1)
1
Part #42515-MY3-780
Грузик (Ref #2)
2
Part #42706-MB0-000
Weight, balance (30) (Ref #2)
2
Part #42706-MCF-D60
Грузик (Ref #2)
2
Part #42705-MCF-D60
Грузик (Ref #2)
2
Part #42704-MCF-D60
Клапан, обод колеса (Ref #3)
3
Part #42753-ML7-003
Клапан, обод колеса (Ref #3)
3
Part #42753-ML7-004
Axle, fr. wheel (Ref #4)
4
Part #44301-MT3-000
Collar, fr (Ref #6)
6
Part #44620-MZ5-E00
Collar, fr (Ref #6)
6
Part #44620-MZ5-E00
Collar, fr (Ref #6)
6
Part #44620-MZ5-E00
Collar, fr (Ref #6)
6
Part #44620-MZ5-E00
Wheel set, fr. (Ref #7)
7
Part #44650-MAJ-G42
Retainer, gear box (Ref #8)
8
Part #44680-ML7-000
Tire (120/70zr17) (Ref #9)
9
Part #44711-MAJ-G46
Tire (120/70zr18) (Ref #9)
9
Part #44711-MAJ-G43
Box assy (Ref #10)
10
Part #44800-ML7-691
Gear, speedometer (Ref #11)
11
Part #44806-ML7-691
Шайба (Ref #12)
12
Part #44809-ML7-003
Шайба (Ref #12)
12
Part #44809-ML7-003
Шайба (Ref #12)
12
Part #44809-ML7-003
Шайба (Ref #12)
12
Part #44809-ML7-003
Shim, damping (Ref #13)
13
Part #45128-ME2-003
Shim, damping (Ref #13)
13
Part #45128-ME2-003
Shim, damping (Ref #13)
13
Part #45128-ME2-003
Shim, damping (Ref #13)
13
Part #45128-ME2-003
Disk, r. fr. brake (Ref #14)
14
Part #45251-MS2-010
Disk, fr. brake (Ref #15)
15
Part #45351-MS8-020
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Bolt, torx (5x14) (Ref #17)
17
Part #90131-MY3-781
Bolt, fr. axle (Ref #18)
18
Part #90305-ML7-000
Bearing (6204) (Ref #19)
19
Part #91052-MZ2-A21
Bearing (6204) (Ref #19)
19
Part #91052-MZ2-A21
Bearing (6204) (Ref #19)
19
Part #91052-MZ2-A21
Bearing (6204) (Ref #19)
19
Part #91052-MZ2-A21
Oil seal (28x47.2x7) (Ref #20)
20
Part #91252-MC4-013
Dust seal (45x55x5) (Ref #21)
21
Part #91258-ML7-003
