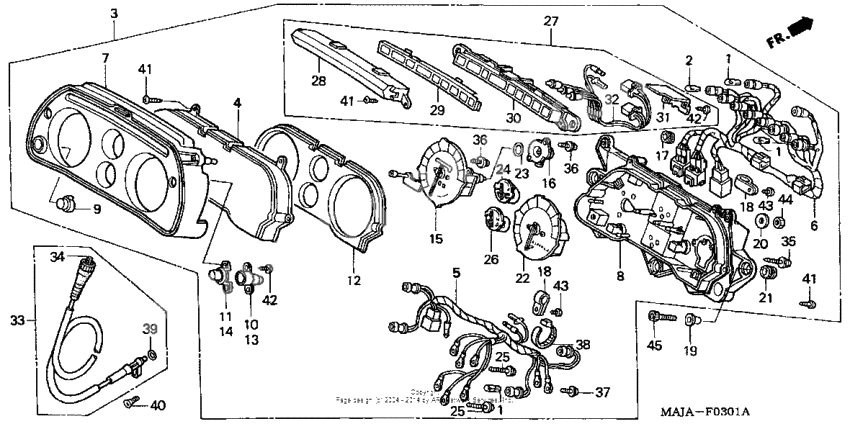

Speedometer (2)
Speedometer (2)
Bulb, wedge base (t10) (12v 1.7w) (stanley) (Ref #2)
2
Part #34908-MB9-871
Meter, combination (Ref #3)
3
Part #37100-MAJ-A31
Lens assy., meter (Ref #4)
4
Part #37102-MS2-601
SOCKET (Ref #5)
5
Part #37105-MT3-003
Socket, pilot box (Ref #6)
6
Part #37106-MY3-781
VISOR ASSY (Ref #7)
7
Part #37110-MY3-781
Case assy. (Ref #8)
8
Part #37111-MT3-003
Knob (Ref #9)
9
Part #37112-MT3-003
Case, r. pilot (Ref #10)
10
Part #37120-MY3-781
Lens assy., r. smoke (Ref #11)
11
Part #37121-MAJ-A31
Plate, reflecting (Ref #12)
12
Part #37130-MM5-008
Case, l. pilot (Ref #13)
13
Part #37130-MY3-781
Lens assy., l. smoke (Ref #14)
14
Part #37131-MAJ-A31
Панель измерителей (Ref #15)
15
Part #37200-MAJ-A31
Boss, elbow (Ref #16)
16
Part #37211-MR7-008
Rubber, setting (Ref #17)
17
Part #37215-KR3-672
CLAMP (Ref #18)
18
Part #37215-MB6-831
CLAMP (Ref #18)
18
Part #37215-MB6-831
CLAMP (Ref #18)
18
Part #37215-MB6-831
CLAMP (Ref #18)
18
Part #37215-MB6-831
COLLAR (Ref #19)
19
Part #37243-KV3-830
Шайба (Ref #20)
20
Part #37244-MA6-008
RUBBER (Ref #21)
21
Part #37244-MB2-008
Tachometer assy. (Ref #22)
22
Part #37250-MT3-602
Валик (Ref #23)
23
Part #37264-MR7-008
Meter assy., fuel (Ref #24)
24
Part #37300-MAJ-G21
Screw-washer, 3x22 (Ref #25)
25
Part #37305-KE5-008
Screw-washer, 3x22 (Ref #25)
25
Part #37305-KE5-008
Screw-washer, 3x22 (Ref #25)
25
Part #37305-KE5-008
Screw-washer, 3x22 (Ref #25)
25
Part #37305-KE5-008
Meter, temperature (Ref #26)
26
Part #37400-MAJ-G21
Box assy., pilot (Ref #27)
27
Part #37600-MAJ-G41
Lens, smoke (Ref #28)
28
Part #37601-MY3-781
Панель (Ref #29)
29
Part #37602-MY3-781
Case assy. (lower) (Ref #30)
30
Part #37603-MAJ-G41
COVER (Ref #31)
31
Part #37604-MY3-781
Indicator, l.e.d. (Ref #32)
32
Part #37605-MY3-781
Кабель (Ref #33)
33
Part #44830-MAJ-G40
Cable (inner) (Ref #34)
34
Part #44831-MAJ-G40
Болт (Ref #35)
35
Part #90133-SG0-A01
Screw-washer (Ref #36)
36
Part #90035-166-008
Screw-washer (Ref #36)
36
Part #90035-166-008
Screw-washer (Ref #36)
36
Part #90035-166-008
Screw-washer (Ref #36)
36
Part #90035-166-008
Screw-washer (3x12) (Ref #37)
37
Part #90108-GN2-008
BAND (Ref #38)
38
Part #90673-SK7-A01
O-ring, 6.8x1.8 (Ref #39)
39
Part #91306-PJ4-000
Screw, oval (5x20) (Ref #40)
40
Part #93700-050200G
Screw, tap (3x16) (Ref #42)
42
Part #9391322420
Screw, tap (3x16) (Ref #42)
42
Part #9391322420
Screw, tap (3x16) (Ref #42)
42
Part #9391322420
Screw, tap (3x16) (Ref #42)
42
Part #9391322420
Болт (Ref #43)
43
Part #93913-24320
Болт (Ref #43)
43
Part #93913-24320
Болт (Ref #43)
43
Part #93913-24320
Болт (Ref #43)
43
Part #93913-24320
Гайка (Ref #44)
44
Part #94001-062-000-S
Bolt, socket (6x25) (Ref #45)
45
Part #96600-0602500
