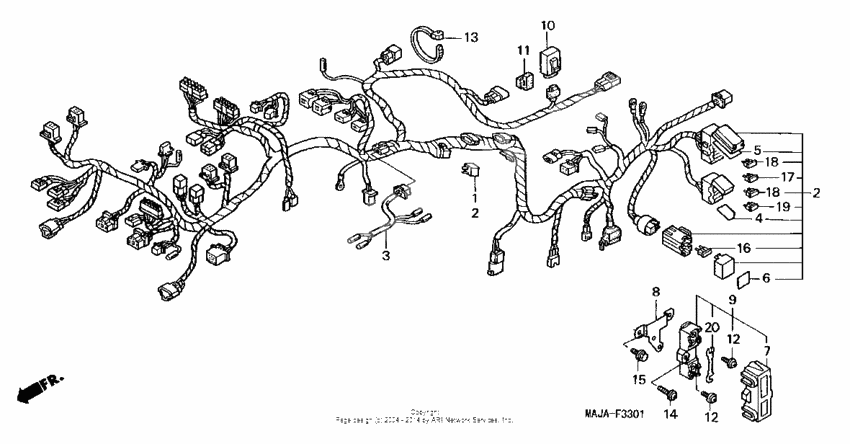

Wire harness (2)
Wire harness (2)
Rectifier comp., silicon (Ref #1)
1
Part #31700-196-000
Wire harness (Ref #2)
2
Part #32100-MAJ-A31
Wire harness (Ref #2)
2
Part #32100-MAJ-A31
Wire harness (Ref #2)
2
Part #32100-MAJ-A31
Wire harness (Ref #2)
2
Part #32100-MAJ-A31
Sub-harness (Ref #3)
3
Part #32120-MT3-000
Label, fuse (Ref #4)
4
Part #38215-MAJ-G40
Label, fuse (Ref #5)
5
Part #38216-MY3-780
Label, fuse (5a) (Ref #6)
6
Part #38225-MAJ-G40
Cover, main fuse box (Ref #7)
7
Part #38255-MAJ-G40
Stay b, fuse box (Ref #8)
8
Part #38260-MAJ-G20
Box assy., main fuse (Ref #9)
9
Part #38270-MAJ-G40
Relay, turn signal (Ref #10)
10
Part #38301-KK9-952
Suspension (Ref #11)
11
Part #38306-GE7-000
Винтшайба, 5x10 (Ref #12)
12
Part #90153-SB2-003
Винтшайба, 5x10 (Ref #12)
12
Part #90153-SB2-003
Винтшайба, 5x10 (Ref #12)
12
Part #90153-SB2-003
Винтшайба, 5x10 (Ref #12)
12
Part #90153-SB2-003
Band.harness (Ref #13)
13
Part #90650-MA6-720
Screw-washer (Ref #14)
14
Part #93891-060-160-8
BOLT (Ref #15)
15
Part #95701-060-120-0
Fuse (Ref #16)
16
Part #98200-30500
Fuse (Ref #17)
17
Part #98200-31000
Fuse (Ref #18)
18
Part #98200-31500
Fuse (Ref #18)
18
Part #98200-31500
Fuse (Ref #18)
18
Part #98200-31500
Fuse (Ref #18)
18
Part #98200-31500
Fuse (Ref #19)
19
Part #98200-33000
Fuse (Ref #20)
20
Part #98200-65500
