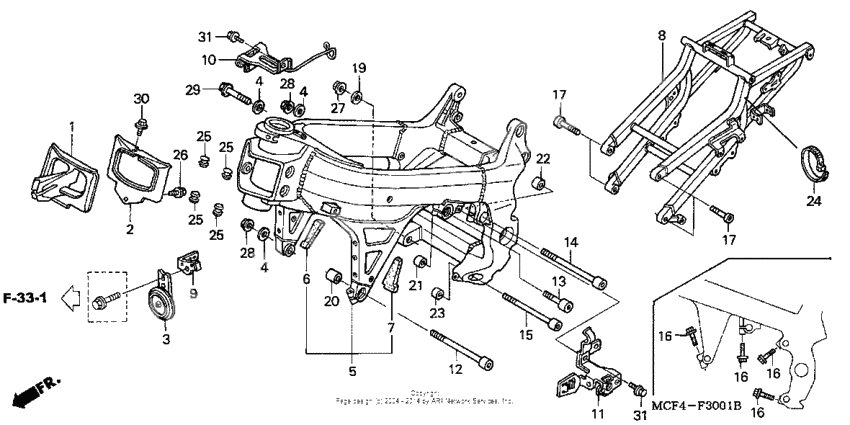

Frame ('02-'05)
Frame ('02-'05)
Tube, fr. connecting (Ref #1)
1
Part #17263-MCF-D30
Holder, fr. (Ref #2)
2
Part #17264-MCF-D30
Horn comp. (high) (mitsuba) (Ref #3)
3
Part #38110-GT8-621
Frame set *nh377m* (Ref #5)
5
Part #50010-MCF-A20ZA
Mat, r. fr. eng hgr (Ref #6)
6
Part #50191-MCF-D30
Mat, l. fr. eng hgr (Ref #7)
7
Part #50192-MCF-D30
Rail, seat (Ref #8)
8
Part #50200-MCF-D30
Опора/стойка horn (Ref #9)
9
Part #50381-MCF-D30
Stay b, r. cowl (Ref #10)
10
Part #64515-MCF-D50
Stay b, l. cowl (Ref #11)
11
Part #64516-MCF-D50
Bolt (12x259.5) (Ref #12)
12
Part #90101-MCF-D30
Bolt, socket (12x55) (Ref #13)
13
Part #90102-MCF-D30
Bolt (12x266) (Ref #14)
14
Part #90103-MCF-D30
Bolt (10x221) (Ref #15)
15
Part #90104-MCF-D30
Bolt, torx (10x32) (Ref #17)
17
Part #90108-MCF-000
Bolt, torx (10x32) (Ref #17)
17
Part #90108-MCF-000
Bolt, torx (10x32) (Ref #17)
17
Part #90108-MCF-000
Bolt, torx (10x32) (Ref #17)
17
Part #90108-MCF-000
Шайба (Ref #19)
19
Part #90410-KR0-000
Collar a, eng hgr (Ref #20)
20
Part #90501-MCF-D30
Collar b, eng hgr (Ref #21)
21
Part #90502-MCF-D30
Collar c, eng hgr (Ref #22)
22
Part #90503-MCF-D30
Collar d, eng hgr (Ref #23)
23
Part #90504-MCF-D30
Band, wire (black) (Ref #24)
24
Part #90652-KT1-771
Bolt-washer (Ref #26)
26
Part #93401-050-100-7
Nut, flange (10mm) (Ref #27)
27
Part #90303-428-900
Болт (Ref #28)
28
Part #9405012070
Болт (Ref #28)
28
Part #9405012070
Болт (Ref #28)
28
Part #9405012070
Болт (Ref #28)
28
Part #9405012070
Болт (Ref #29)
29
Part #95801-1205507
BOLT (Ref #30)
30
Part #96001-060-100-7
Bolt, flange, 6x14 (Ref #31)
31
Part #96001-0601407
Bolt, flange, 6x14 (Ref #31)
31
Part #96001-0601407
Bolt, flange, 6x14 (Ref #31)
31
Part #96001-0601407
Bolt, flange, 6x14 (Ref #31)
31
Part #96001-0601407
