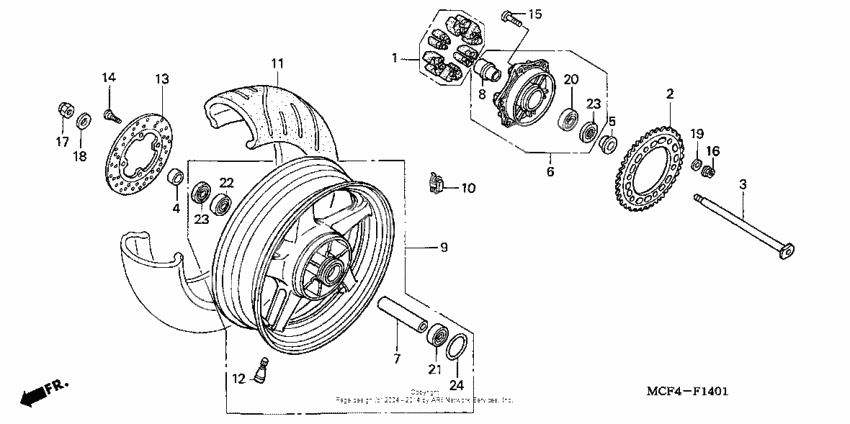

Rear wheel ('02-'05)
Rear wheel ('02-'05)
Damper set, wheel (Ref #1)
1
Part #06410-MCF-000
Звездочка (Ref #2)
2
Part #41201-MCF-000
Axle, rr. wheel (Ref #3)
3
Part #42301-MCF-D30
Colr, rr. brake side (Ref #4)
4
Part #42312-MCF-D00
Colr, rr. wheel side (Ref #5)
5
Part #42313-MCF-D00
Flange sub-assy. (Ref #6)
6
Part #42615-MCF-000
Collar, rr. (Ref #7)
7
Part #42620-MCF-000
Collar b, rr. (Ref #8)
8
Part #42625-MCF-000
Wheel sub (type1) (Ref #9)
9
Part #42650-MCF-D30ZB
Weight, balance (30) (Ref #10)
10
Part #42706-MCF-D60
Грузик (Ref #10)
10
Part #42705-MCF-D60
Грузик (Ref #10)
10
Part #42704-MCF-D60
Tire (190/50zr17) (Ref #11)
11
Part #42711-MCF-D31
Клапан, обод колеса (Ref #12)
12
Part #42753-ML7-004
Disk, rr. brake (Ref #13)
13
Part #43251-MEE-000
Bolt, disk (8x24) (Ref #14)
14
Part #90105-MV9-003
Bolt (10x30) (Ref #15)
15
Part #90121-MCF-D30
Nut, u (10mm) (Ref #16)
16
Part #90304-KAE-871
Nut, u (22mm) (Ref #17)
17
Part #90306-MCF-D00
Шайба (Ref #18)
18
Part #90401-MAZ-000
Шайба (Ref #19)
19
Part #90502-MCF-000
Bearing (27x52x23.8) (Ref #20)
20
Part #91051-MCF-003
Bearing (6005) (Ref #21)
21
Part #91052-MCF-003
Bearing (6205x2) (Ref #22)
22
Part #91053-MAZ-003
DUST SEAL (Ref #23)
23
Part #91254-MEE-003
DUST SEAL (Ref #23)
23
Part #91254-MEE-003
DUST SEAL (Ref #23)
23
Part #91254-MEE-003
DUST SEAL (Ref #23)
23
Part #91254-MEE-003
Прокладка (Ref #24)
24
Part #91352-MCF-003
