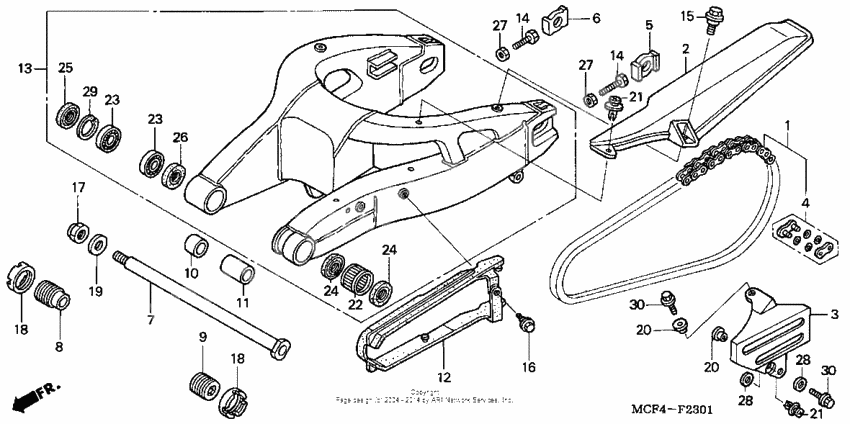

Swingarm ('02-'05)
Swingarm ('02-'05)
Chain set, drive (Ref #1)
1
Part #06405-MCJ-000
Chain set, drive (Ref #1)
1
Part #06405-MCF-P00
Case a, drive chain (Ref #2)
2
Part #40510-MCJ-000
Case b, drive chain (Ref #3)
3
Part #40520-MCF-D30
Master link (Ref #4)
4
Part #40545-MCJ-005
Master link (Ref #4)
4
Part #40545-MCF-003
Collar, l. rr. (Ref #5)
5
Part #42305-MCF-000
Collar, r. rr. (Ref #6)
6
Part #42306-MCF-000
Bolt, swingarm pivot (Ref #7)
7
Part #52101-MCF-D30
Bolt, r (Ref #8)
8
Part #52108-MCF-D30
Болт (Ref #9)
9
Part #52109-MCF-D30
Collar, r (Ref #10)
10
Part #52142-MCF-D30
Collar, l (Ref #11)
11
Part #52143-MCF-D30
Slider, chain (Ref #12)
12
Part #52170-MCF-D30
Swingarm sub-assy. (Ref #13)
13
Part #52200-MCF-D30
Болт (Ref #14)
14
Part #90106-MCF-D00
Болт (Ref #14)
14
Part #90106-MCF-D00
Болт (Ref #14)
14
Part #90106-MCF-D00
Болт (Ref #14)
14
Part #90106-MCF-D00
Болт (Ref #15)
15
Part #90113-MAS-E00
Bolt, chain slider (Ref #16)
16
Part #90130-MCJ-750
Nut, u (18mm) (Ref #17)
17
Part #90306-MCS-G00
Nut, lock (36mm) (Ref #18)
18
Part #90354-MCF-D00
Nut, lock (36mm) (Ref #18)
18
Part #90354-MCF-D00
Nut, lock (36mm) (Ref #18)
18
Part #90354-MCF-D00
Nut, lock (36mm) (Ref #18)
18
Part #90354-MCF-D00
Шайба (Ref #19)
19
Part #90401-KZ4-890
Шайба (Ref #20)
20
Part #90402-GB0-900
Шайба (Ref #20)
20
Part #90402-GB0-900
Шайба (Ref #20)
20
Part #90402-GB0-900
Шайба (Ref #20)
20
Part #90402-GB0-900
ДЕТАЛЬ (Ref #21)
21
Part #90683-GR1-003
ДЕТАЛЬ (Ref #21)
21
Part #90683-GR1-003
ДЕТАЛЬ (Ref #21)
21
Part #90683-GR1-003
ДЕТАЛЬ (Ref #21)
21
Part #90683-GR1-003
Bearing, needle (Ref #22)
22
Part #91071-MR7-003
Bearing (20x37x9) (Ref #23)
23
Part #91072-MR7-003
Bearing (20x37x9) (Ref #23)
23
Part #91072-MR7-003
Bearing (20x37x9) (Ref #23)
23
Part #91072-MR7-003
Bearing (20x37x9) (Ref #23)
23
Part #91072-MR7-003
Dust seal (28x37x4) (Ref #24)
24
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #24)
24
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #24)
24
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #24)
24
Part #91202-MR7-003
Dust seal (26x37x5) (Ref #25)
25
Part #91214-MR7-003
Dust seal (27x34x4) (Ref #26)
26
Part #91261-KZ3-861
Гайка (Ref #27)
27
Part #94001-080-000-S
Гайка (Ref #27)
27
Part #94001-080-000-S
Гайка (Ref #27)
27
Part #94001-080-000-S
Гайка (Ref #27)
27
Part #94001-080-000-S
Шайба (Ref #28)
28
Part #94101-06700
Шайба (Ref #28)
28
Part #94101-06700
Шайба (Ref #28)
28
Part #94101-06700
Шайба (Ref #28)
28
Part #94101-06700
Кольцо стопорное (Ref #29)
29
Part #9452037000
Болт (Ref #30)
30
Part #96001-0601807
Болт (Ref #30)
30
Part #96001-0601807
Болт (Ref #30)
30
Part #96001-0601807
Болт (Ref #30)
30
Part #96001-0601807
