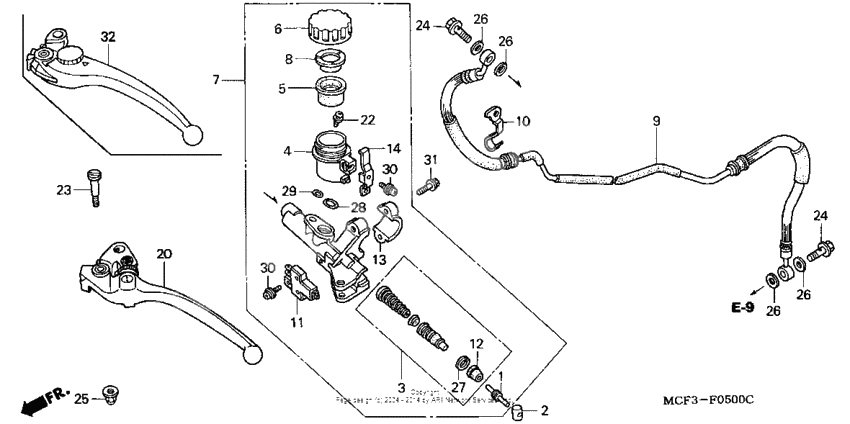

Главный цилиндр сцепления
Главный цилиндр сцепления
Штанга (Ref #1)
1
Part #22884-MAT-E01
Втулка (Ref #2)
2
Part #22885-MB0-006
PISTON SET (Ref #3)
3
Part #22886-MAT-E01
Cup, oil (Ref #4)
4
Part #22887-MBB-006
DIAPHRAGM (Ref #5)
5
Part #22888-MR7-006
КРЫШКА БАЧКА ЦИЛИНДРА СЦЕПЛЕНИЯ (Ref #6)
6
Part #22889-MR7-006
M/cyl sub-assy (Ref #7)
7
Part #22890-MCF-016
Пластина (Ref #8)
8
Part #22890-MR7-006
Pipe, clutch (Ref #9)
9
Part #22900-MCF-D31
Clamp, clutch pipe (Ref #10)
10
Part #22910-MCF-000
Switch assy., clutch (Ref #11)
11
Part #35330-MB0-003
Ботинок (Ref #12)
12
Part #45504-MAT-E01
HOLDER (Ref #13)
13
Part #45517-166-006
Plate, stop (Ref #14)
14
Part #45535-MR8-901
Screw, triple (4x11) (Ref #22)
22
Part #90101-MR7-006
Bolt, r (Ref #23)
23
Part #90114-MA5-671
Bolt, oil (10x22) (Ref #24)
24
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #24)
24
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #24)
24
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #24)
24
Part #90145-MS9-612
Nut, cap, 6mm (Ref #25)
25
Part #90201-415-000
Circlip (Ref #27)
27
Part #90651-MA5-671
Прокладка (Ref #28)
28
Part #91212-422-006
Прокладка (Ref #29)
29
Part #91355-MG9-006
Screw-washer (Ref #30)
30
Part #93893-040-120-7
Screw-washer (Ref #30)
30
Part #93893-040-120-7
Screw-washer (Ref #30)
30
Part #93893-040-120-7
Screw-washer (Ref #30)
30
Part #93893-040-120-7
Болт (Ref #31)
31
Part #96001-0602207
Lever, l. handle (Ref #32)
32
Part #53180-MCF-305
