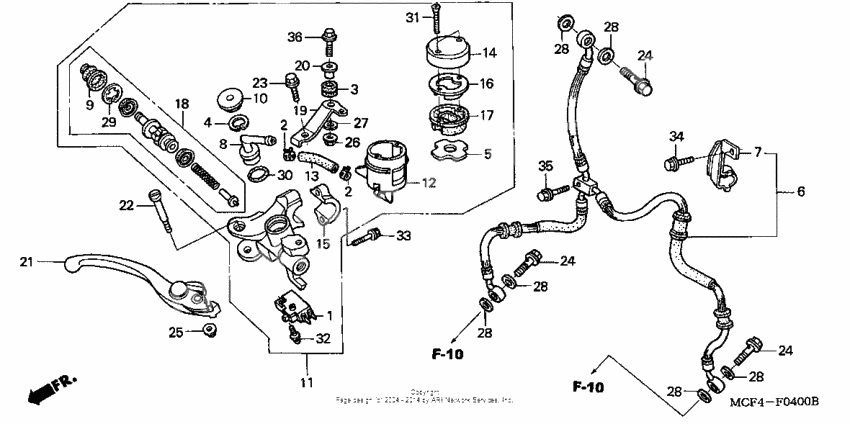

Front brake master cylinder
Front brake master cylinder
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
CLAMP (Ref #2)
2
Part #43514-KS6-701
CLAMP (Ref #2)
2
Part #43514-KS6-701
CLAMP (Ref #2)
2
Part #43514-KS6-701
CLAMP (Ref #2)
2
Part #43514-KS6-701
RUBBER (Ref #3)
3
Part #43516-HA2-000
Circlip, rr. (Ref #4)
4
Part #43517-KS6-701
Float, rr. (Ref #5)
5
Part #43523-MAH-671
Hose, fr. brake (Ref #6)
6
Part #45125-MCF-D31
Clamp, fr. (Ref #7)
7
Part #45156-MCF-000
Коннектор (Ref #8)
8
Part #45503-KV3-006
Ботинок (Ref #9)
9
Part #45504-MCF-006
Пыльник (Ref #10)
10
Part #45505-KV3-006
M/cyl sub-assy, fr. (Ref #11)
11
Part #45510-MCF-D31
Cup, oil (Ref #12)
12
Part #45511-KV3-016
HOSE (Ref #13)
13
Part #45512-MAS-006
Cap, oil cup (Ref #14)
14
Part #45513-KV3-006
HOLDER (Ref #15)
15
Part #45517-166-006
Пластина (Ref #16)
16
Part #45518-KV3-006
DIAPHRAGM (Ref #17)
17
Part #45520-KV3-006
Master cylinder set (Ref #18)
18
Part #45530-MCJ-751
Stay, fr. (Ref #19)
19
Part #45550-MCF-006
Collar (6.3x13) (Ref #20)
20
Part #50324-425-010
Lever, r. handle (Ref #21)
21
Part #53170-MCJ-751
Bolt, handle lever (Ref #22)
22
Part #90114-MCF-006
Болт (Ref #23)
23
Part #90117-MR7-000
Nut, cap, 6mm (Ref #25)
25
Part #90201-415-000
Nut, u (6mm) (Ref #26)
26
Part #90301-MG3-000
Washer, 6x16 (Ref #27)
27
Part #90473-147-000
Circlip (Ref #29)
29
Part #90651-MCF-006
Прокладка (Ref #30)
30
Part #91212-422-006
Screw-washer (Ref #32)
32
Part #93893-040-120-7
Болт (Ref #33)
33
Part #96001-0602207
Болт (Ref #33)
33
Part #96001-0602207
Болт (Ref #33)
33
Part #96001-0602207
Болт (Ref #33)
33
Part #96001-0602207
Болт (Ref #34)
34
Part #96300-0601207
Болт (Ref #35)
35
Part #96300-0602507
Болт (Ref #36)
36
Part #96300-0602807
