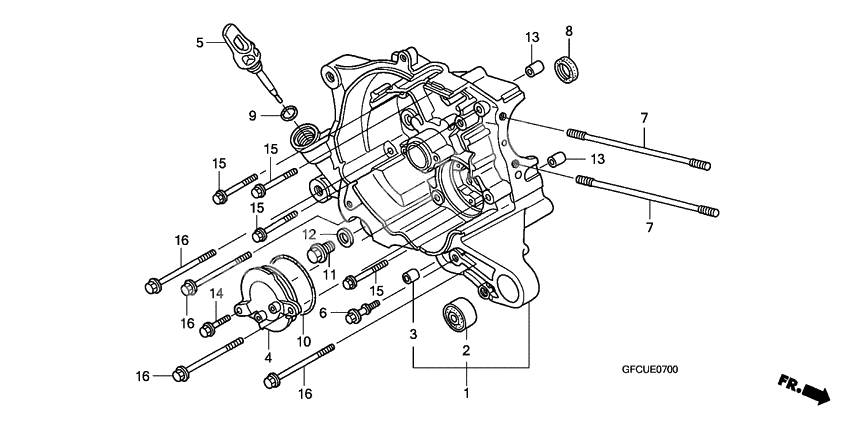

Right crankcase
Right crankcase
Crankcase comp. (Ref #1)
1
Part #11100-GFC-950
Rubber bush, eng hgr (Ref #2)
2
Part #11105-GFC-900
Bush,m stand (Ref #3)
3
Part #11205-GBC-300
COVER (Ref #4)
4
Part #11361-GFC-950
Dipstick, oil (Ref #5)
5
Part #15651-GFC-900
BOLT (Ref #6)
6
Part #90016-GFC-950
Болт сквозное (Ref #7)
7
Part #90031-GFC-900
Болт сквозное (Ref #7)
7
Part #90031-GFC-900
Болт сквозное (Ref #7)
7
Part #90031-GFC-900
Болт сквозное (Ref #7)
7
Part #90031-GFC-900
Oil seal,16x26x7 (Ref #8)
8
Part #91201-GCC-000
Прокладка (Ref #9)
9
Part #91307-GFC-850
Прокладка (Ref #10)
10
Part #91308-GFC-850
BOLT (Ref #11)
11
Part #92800-12000
Шайба (Ref #12)
12
Part #94109-12000
Dowel pin, 8x20 (Ref #13)
13
Part #9430108200
Dowel pin, 8x20 (Ref #13)
13
Part #9430108200
Dowel pin, 8x20 (Ref #13)
13
Part #9430108200
Dowel pin, 8x20 (Ref #13)
13
Part #9430108200
Bolt, flange, 6x22 (Ref #14)
14
Part #95701-0602200
