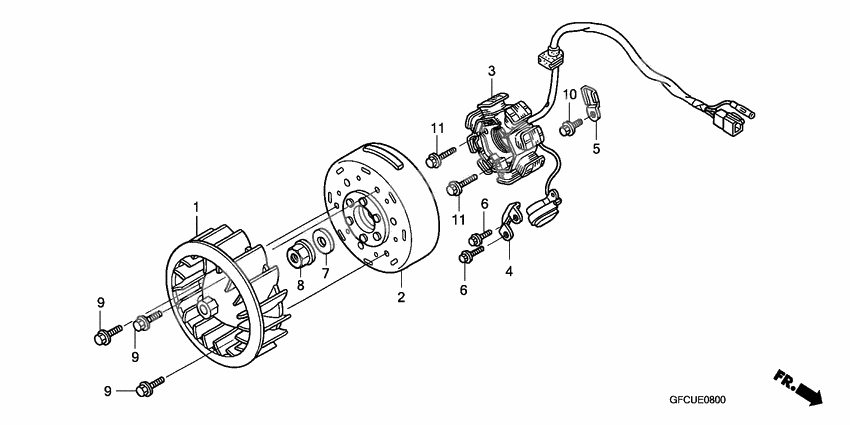

Generators
Generators
Fan comp (Ref #1)
1
Part #19510-GFC-950
Flywheel comp. (Ref #2)
2
Part #31110-GFK-890
Stator comp (Ref #3)
3
Part #31120-GFC-870
CLIP (Ref #4)
4
Part #32907-GFC-890
Clamp, wire harness (Ref #5)
5
Part #32976-GFC-890
BOLT (Ref #6)
6
Part #90083-GFC-950
BOLT (Ref #6)
6
Part #90083-GFC-950
BOLT (Ref #6)
6
Part #90083-GFC-950
BOLT (Ref #6)
6
Part #90083-GFC-950
Шайба,10MM (Ref #7)
7
Part #90410-GCC-000
Гайка (Ref #8)
8
Part #94050-10000
BOLT (Ref #10)
10
Part #96001-060-160-0
Bolt, flange, 6x22 (Ref #11)
11
Part #96001-0602200
Bolt, flange, 6x22 (Ref #11)
11
Part #96001-0602200
Bolt, flange, 6x22 (Ref #11)
11
Part #96001-0602200
Bolt, flange, 6x22 (Ref #11)
11
Part #96001-0602200
