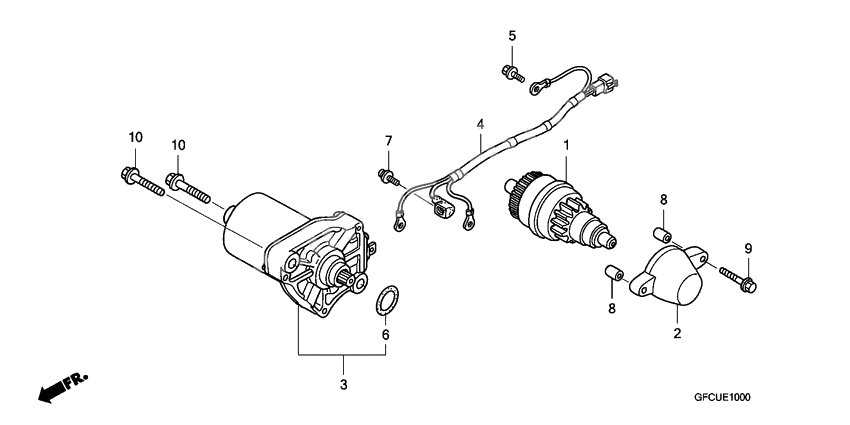

Starting motor

Starting motor

Starting motor
Шестерня (Ref #1)
1
Part #28120-GCC-000
Holder comp (Ref #2)
2
Part #28150-GFC-950
Motor unit (Ref #3)
3
Part #31210-GFC-871
Sub harness (Ref #4)
4
Part #32105-GFC-871
BOLT (Ref #5)
5
Part #90149-GAZ-980
O RING (Ref #6)
6
Part #91309-KEE-630
Screw-washer (Ref #7)
7
Part #93892-040-060-8
Dowel pin (Ref #8)
8
Part #94301-08140
Dowel pin (Ref #8)
8
Part #94301-08140
Dowel pin (Ref #8)
8
Part #94301-08140
Dowel pin (Ref #8)
8
Part #94301-08140
BOLT (Ref #9)
9
Part #96001-060-280-0
Bolt, flange, 6x35 (Ref #10)
10
Part #96001-0603500
Bolt, flange, 6x35 (Ref #10)
10
Part #96001-0603500
Bolt, flange, 6x35 (Ref #10)
10
Part #96001-0603500
Bolt, flange, 6x35 (Ref #10)
10
Part #96001-0603500
+ -
