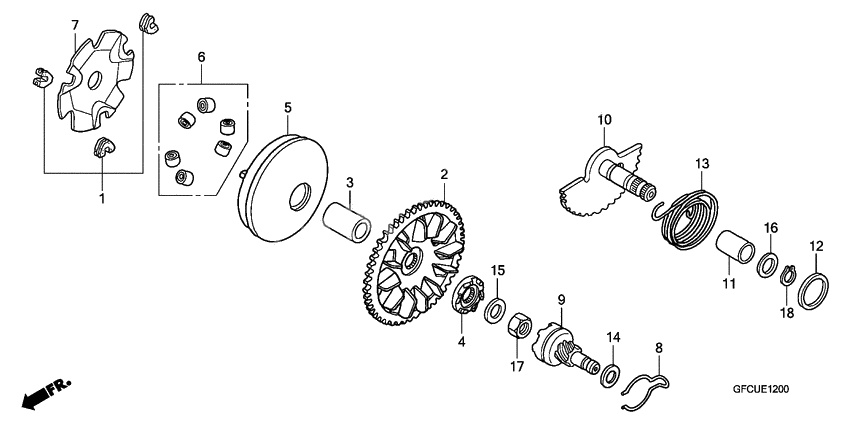

Drive face/ kick starter spindle
Drive face/ kick starter spindle
Piece set, slide (Ref #1)
1
Part #22011-GW0-000
Face comp (Ref #2)
2
Part #22102-GFC-780
Boss, drive face (Ref #3)
3
Part #22105-GFC-900
RATCHET (Ref #4)
4
Part #22109-GFC-900
Face comp., movable drive (Ref #5)
5
Part #22110-GFC-900
Roller set (Ref #6)
6
Part #22123-GFC-900
Plate, ramp (Ref #7)
7
Part #22131-GBC-000
Spg,kick driven g (Ref #8)
8
Part #28223-GCC-000
Gear comp (Ref #9)
9
Part #28230-GCC-000
Spindle comp. (Ref #10)
10
Part #28250-GFC-900
Втулка (Ref #11)
11
Part #28253-GFC-900
Collar, kick boss (Ref #12)
12
Part #28255-GS6-000
Пружина (Ref #13)
13
Part #28281-GFC-900
Washer, thrust, 10mm (Ref #14)
14
Part #90412-329-000
Washer,special12m (Ref #15)
15
Part #90426-GFC-900
Шайба (Ref #16)
16
Part #90451-GFC-900
Гайка (Ref #17)
17
Part #94001-122-000-S
Circlip, external, 14mm (Ref #18)
18
Part #9451114000
