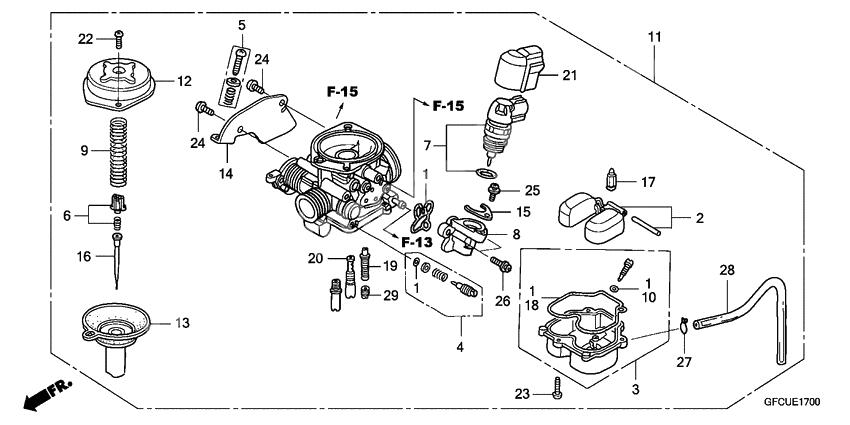

Carburetor assy
Carburetor assy
FLOAT SET (Ref #2)
2
Part #16013-KEW-900
Chamber set (Ref #3)
3
Part #16015-GCC-770
Screw set a (Ref #4)
4
Part #16016-GFC-860
Screw set,b (Ref #5)
5
Part #16028-GCC-770
PLATE SET (Ref #6)
6
Part #16037-GFC-890
Bystarter assy. (Ref #7)
7
Part #16046-GFC-892
Body comp (Ref #8)
8
Part #16047-GFC-890
Пружина (Ref #9)
9
Part #16050-GFC-890
Прокладка (Ref #10)
10
Part #16075-KEE-730
Карбюратор (Ref #11)
11
Part #16100-GFC-791
Верх (Ref #12)
12
Part #16107-GFC-890
Поршень (Ref #13)
13
Part #16111-GFC-890
STAY (Ref #14)
14
Part #16119-GFC-891
PLATE,SET (Ref #15)
15
Part #16131-GFC-890
Needle comp. (Ref #16)
16
Part #16151-GFC-790
Valve comp. (Ref #17)
17
Part #16155-GCC-B50
Прокладка (Ref #18)
18
Part #16163-GCC-770
JET (Ref #19)
19
Part #16166-GFH-930
Jet comp (Ref #20)
20
Part #16180-GFC-890
CAP (Ref #21)
21
Part #16190-GFC-890
Болт (Ref #22)
22
Part #93500-040-080-H
Болт (Ref #23)
23
Part #93500-040-120-H
Болт (Ref #24)
24
Part #93500-050-100-H
Болт (Ref #24)
24
Part #93500-050-100-H
Болт (Ref #24)
24
Part #93500-050-100-H
Болт (Ref #24)
24
Part #93500-050-100-H
Screw-washer (Ref #25)
25
Part #93892-040-080-8
Screw-washer (Ref #26)
26
Part #93892-050-120-8
Clip, tube (b8) (Ref #27)
27
Part #9500202089
TUBE (Ref #28)
28
Part #95003-090-333-1
JET (Ref #29)
29
Part #99102-GFC-0000
