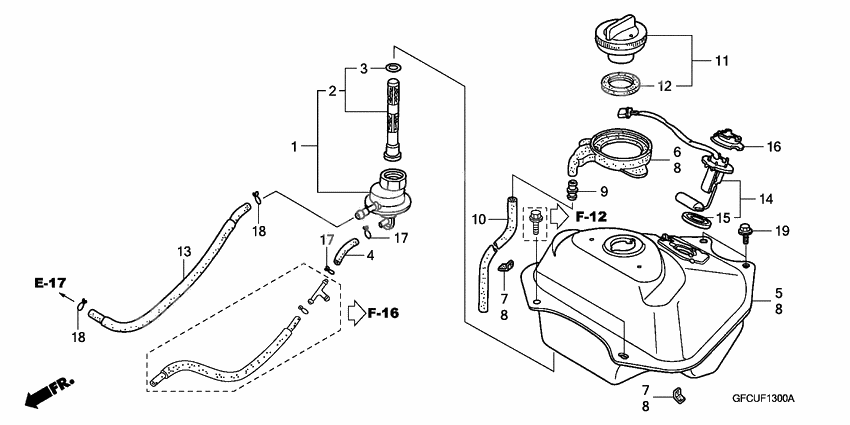

Tank fuel
Tank fuel
Cock assy. (Ref #1)
1
Part #16950-GFK-890
Фильтры (Ref #2)
2
Part #16952-GFK-900
Прокладка (Ref #3)
3
Part #16958-GFK-900
TUBE (Ref #4)
4
Part #17229-GFC-950
Tank comp. (Ref #5)
5
Part #17500-GFC-900
Tray (Ref #6)
6
Part #17505-GFC-900
RUBBER (Ref #7)
7
Part #17506-GFC-901
RUBBER (Ref #7)
7
Part #17506-GFC-901
RUBBER (Ref #7)
7
Part #17506-GFC-901
RUBBER (Ref #7)
7
Part #17506-GFC-901
Joint, fuel tube (Ref #9)
9
Part #17525-KBN-900
TUBE (Ref #10)
10
Part #17526-GFC-900
Cap comp. (Ref #11)
11
Part #17620-KSB-880
Прокладка (Ref #12)
12
Part #17632-383-831
TUBE (Ref #13)
13
Part #17681-GFC-950
Fuel unit set (Ref #14)
14
Part #37080-GFC-890
Packing, base (Ref #15)
15
Part #37801-GA7-700
RETAINER (Ref #16)
16
Part #37802-GFC-950
CLIP (Ref #17)
17
Part #95002-02070
CLIP (Ref #17)
17
Part #95002-02070
CLIP (Ref #17)
17
Part #95002-02070
CLIP (Ref #17)
17
Part #95002-02070
CLIP (Ref #18)
18
Part #95002-02080
CLIP (Ref #18)
18
Part #95002-02080
CLIP (Ref #18)
18
Part #95002-02080
CLIP (Ref #18)
18
Part #95002-02080
BOLT (Ref #19)
19
Part #95701-060-120-0
