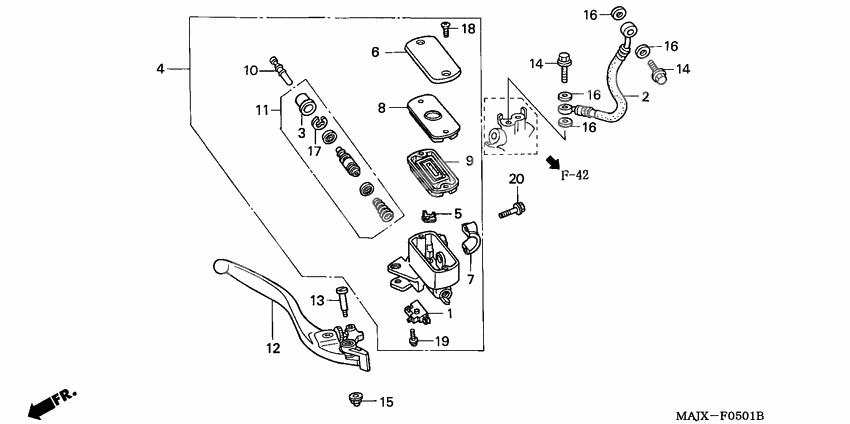

Fr. brake master cylinder ST1100A
Fr. brake master cylinder ST1100A
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Main hose a, fr. (Ref #2)
2
Part #45125-MAJ-D71
Ботинок (Ref #3)
3
Part #45504-410-003
M/cyl sub-assy, fr. (Ref #4)
4
Part #45510-MAJ-G41
PROTECTOR (Ref #5)
5
Part #45512-MA6-006
Cap, master cylinder (Ref #6)
6
Part #45513-MM5-016
HOLDER (Ref #7)
7
Part #45517-166-006
Пластина (Ref #8)
8
Part #45518-MM5-006
DIAPHRAGM (Ref #9)
9
Part #45520-MM5-006
Штанга (Ref #10)
10
Part #45525-MAJ-G41
Piston set, fr. (Ref #11)
11
Part #45530-MAJ-G41
Lever, r. handle (Ref #12)
12
Part #53170-MAJ-G41
Bolt, r (Ref #13)
13
Part #90114-MA5-671
Bolt, oil (10x22) (Ref #14)
14
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #14)
14
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #14)
14
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #14)
14
Part #90145-MS9-612
Nut, cap, 6mm (Ref #15)
15
Part #90201-415-000
Circlip (Ref #17)
17
Part #90651-MA5-671
Болт (Ref #18)
18
Part #93600-040120G
Screw-washer (Ref #19)
19
Part #93893-040-120-7
Болт (Ref #20)
20
Part #96001-0602207
