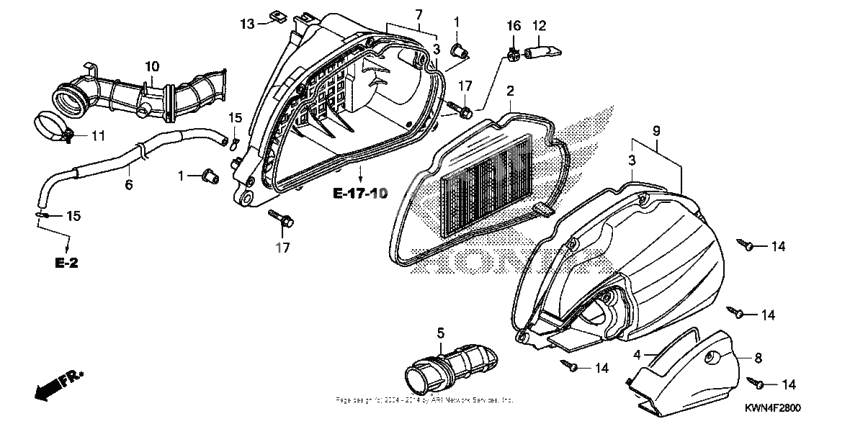

Воздушный фильтр
Воздушный фильтр
Collar, air cleaner setting (Ref #1)
1
Part #17208-GR1-010
Collar, air cleaner setting (Ref #1)
1
Part #17208-GR1-010
Collar, air cleaner setting (Ref #1)
1
Part #17208-GR1-010
Collar, air cleaner setting (Ref #1)
1
Part #17208-GR1-010
Element comp,air/ (Ref #2)
2
Part #17210-KWN-900
Seal,air/c (Ref #3)
3
Part #17212-KWN-900
Seal,air/c (Ref #3)
3
Part #17212-KWN-900
Seal,air/c (Ref #3)
3
Part #17212-KWN-900
Seal,air/c (Ref #3)
3
Part #17212-KWN-900
Seal,duct cover (Ref #4)
4
Part #17213-KWN-900
Duct,air/c (Ref #5)
5
Part #17215-KWN-900
TUBE,BREATHER (Ref #6)
6
Part #17218-KWN-900
Case sub assy,air (Ref #7)
7
Part #17225-KWN-900
Cover,air/c duct (Ref #8)
8
Part #17234-KWN-900
Cover sub assy,ai (Ref #9)
9
Part #17245-KWN-900
Tube.air/c conn (Ref #10)
10
Part #17253-KWN-900
Band 46,conn tube (Ref #11)
11
Part #17254-KWN-900
TUBE,DRAIN (Ref #12)
12
Part #17261-KWN-900
Nut, clip (6mm) (Ref #13)
13
Part #90305-GEE-710
Clip, tube (b12.5) (Ref #15)
15
Part #9500202130
Clip, tube (b12.5) (Ref #15)
15
Part #9500202130
Clip, tube (b12.5) (Ref #15)
15
Part #9500202130
Clip, tube (b12.5) (Ref #15)
15
Part #9500202130
CLAMP (Ref #16)
16
Part #95002-412-000-8
BOLT (Ref #17)
17
Part #95701-060-250-0
BOLT (Ref #17)
17
Part #95701-060-250-0
BOLT (Ref #17)
17
Part #95701-060-250-0
BOLT (Ref #17)
17
Part #95701-060-250-0
