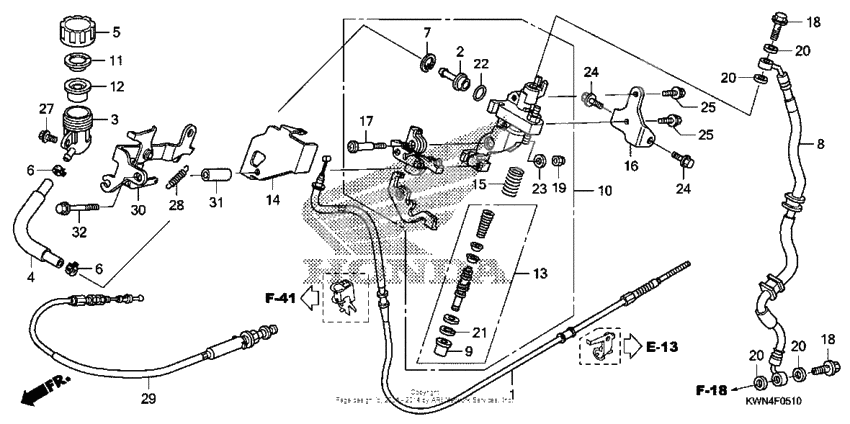

Brake master cylinder (cbs)
Brake master cylinder (cbs)
Cable comp,2nd rr (Ref #1)
1
Part #43450-KWN-931
Коннектор (Ref #2)
2
Part #43503-KZ3-B01
Стакан (Ref #3)
3
Part #43511-KS6-702
Hose comp,m/c (Ref #4)
4
Part #43512-KWN-931
Cap,m/c (Ref #5)
5
Part #43513-KWN-671
CLAMP (Ref #6)
6
Part #43514-KS6-701
CLAMP (Ref #6)
6
Part #43514-KS6-701
CLAMP (Ref #6)
6
Part #43514-KS6-701
CLAMP (Ref #6)
6
Part #43514-KS6-701
Circlip, rr. (Ref #7)
7
Part #43517-KS6-701
Hose comp,cbs (Ref #8)
8
Part #45127-KWN-701
Ботинок (Ref #9)
9
Part #45504-410-003
Sub assy,m/c (Ref #10)
10
Part #43510-KWN-671
Пластина (Ref #11)
11
Part #45518-GM9-711
DIAPHRAGM (Ref #12)
12
Part #45520-GM9-711
Cylinder set,mast (Ref #13)
13
Part #45530-KVY-911
Cvr, master cylinder (Ref #14)
14
Part #47602-KWN-671
Spring,delay (Ref #15)
15
Part #47604-KWN-931
Stay,m/c (Ref #16)
16
Part #50320-KWN-931
BOLT,PIVOT (Ref #17)
17
Part #90114-GEV-712
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Nut,u,6mm (Ref #19)
19
Part #90301-GEV-711
Circlip (Ref #21)
21
Part #90651-MA5-671
Прокладка (Ref #22)
22
Part #91212-422-006
Шайба (Ref #23)
23
Part #94101-06800
BOLT (Ref #24)
24
Part #95701-060-160-0
BOLT (Ref #24)
24
Part #95701-060-160-0
BOLT (Ref #24)
24
Part #95701-060-160-0
BOLT (Ref #24)
24
Part #95701-060-160-0
BOLT (Ref #25)
25
Part #95701-060-160-8
BOLT (Ref #25)
25
Part #95701-060-160-8
BOLT (Ref #25)
25
Part #95701-060-160-8
BOLT (Ref #25)
25
Part #95701-060-160-8
BOLT (Ref #27)
27
Part #96001-060-140-0
Пружина (Ref #28)
28
Part #46510-KJ9-000
Cable comp ,brk l (Ref #29)
29
Part #46620-KWN-671
Stay comp,brake l (Ref #30)
30
Part #47660-KWN-670
Collar,brake lock (Ref #31)
31
Part #47665-KWN-670
BOLT (Ref #32)
32
Part #95701-060-450-7
