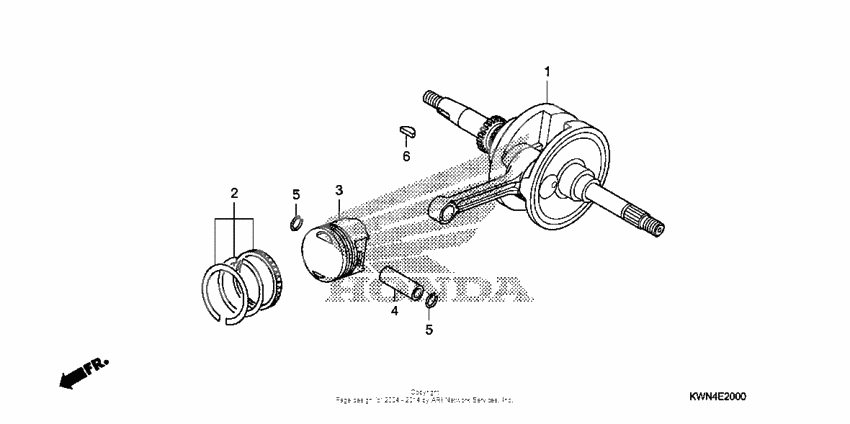

Crankshaft + piston
Crankshaft + piston
CRANKSHAFT COMP (Ref #1)
1
Part #13000-KWN-900
Ring set,piston o (Ref #2)
2
Part #13051-KWN-900
Ring set,piston o (Ref #2)
2
Part #13041-KWN-900
Ring set,piston o (Ref #2)
2
Part #13031-KWN-900
Ring set,piston o (Ref #2)
2
Part #13021-KWN-900
Ring set,piston s (Ref #2)
2
Part #13011-KWN-900
Piston,os,1.00 (Ref #3)
3
Part #13105-KWN-902
Piston (o.s. 0.75) (Ref #3)
3
Part #13104-KWN-903
Piston,os,0.75 (Ref #3)
3
Part #13104-KWN-902
Piston (o.s. 0.50) (Ref #3)
3
Part #13103-KWN-903
Piston,os,0.50 (Ref #3)
3
Part #13103-KWN-902
Piston (o.s. 0.25) (Ref #3)
3
Part #13102-KWN-903
Piston,os,0.25 (Ref #3)
3
Part #13102-KWN-902
Piston (std) (Ref #3)
3
Part #13101-KWN-902
Piston (o.s. 1.00) (Ref #3)
3
Part #13105-KWN-903
PIN,PISTON (Ref #4)
4
Part #13111-KWN-900
Clip,piston pin,1 (Ref #5)
5
Part #13115-GN5-910
Clip,piston pin,1 (Ref #5)
5
Part #13115-GN5-910
Clip,piston pin,1 (Ref #5)
5
Part #13115-GN5-910
Clip,piston pin,1 (Ref #5)
5
Part #13115-GN5-910
Key, woodruff (4mm) (Ref #6)
6
Part #90701-HB6-010
