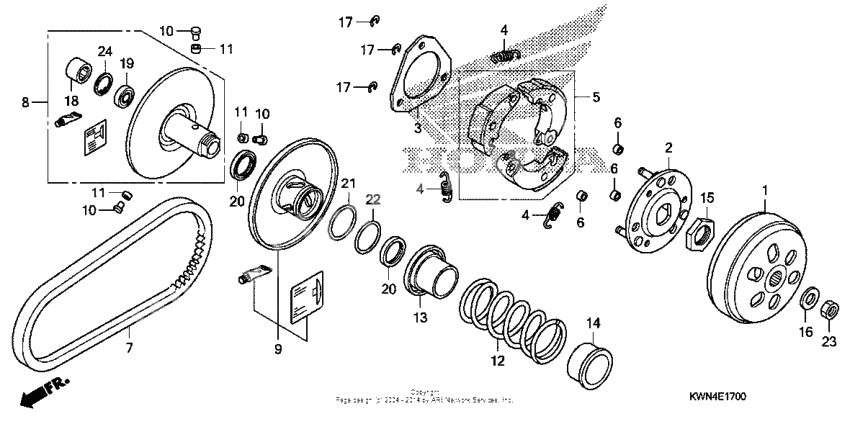

Driven face
Driven face
Outer comp,clutch (Ref #1)
1
Part #22100-KWN-900
Plate comp,drive (Ref #2)
2
Part #22350-KVB-900
Plate,clutch side (Ref #3)
3
Part #22361-KVB-900
Weight set,clutch (Ref #5)
5
Part #22535-KWN-900
BELT,DRIVE (Ref #7)
7
Part #23100-KWN-901
Face set,driven (Ref #8)
8
Part #23205-KWN-640
Face set,movable (Ref #9)
9
Part #23224-KWN-640
Spg,lh driven fac (Ref #12)
12
Part #23233-KWN-900
Collar,seal (Ref #13)
13
Part #23237-KWN-900
Collar,spg (Ref #14)
14
Part #23238-KWN-900
Nut,special 30mm (Ref #15)
15
Part #90202-KN7-670
Washer,12.2x29x2. (Ref #16)
16
Part #90441-GY6-940
Brg,needle 20x29x (Ref #18)
18
Part #91001-KCW-003
Bearing (20x29x18) (Ref #18)
18
Part #91109-KVY-901
Bearing (6902u) (Ref #19)
19
Part #91009-KVY-961
Bearing (6902u) (Ref #19)
19
Part #91002-GA7-701
Seal,driven face, (Ref #20)
20
Part #91211-KN7-671
Seal,driven face, (Ref #20)
20
Part #91211-KN7-671
Seal,driven face, (Ref #20)
20
Part #91211-KN7-671
Seal,driven face, (Ref #20)
20
Part #91211-KN7-671
O-ring,38.5x2 (Ref #21)
21
Part #91351-GR1-000
Прокладка (Ref #22)
22
Part #91351-642-000
Nut, hex., 12mm (Ref #23)
23
Part #9403012200
Circlip (Ref #24)
24
Part #94520-28000
