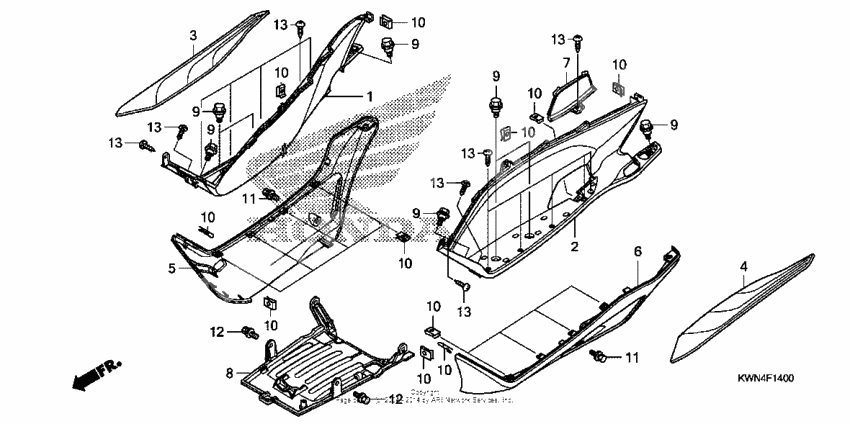

Floor panel
Floor panel
Step,r floor*nh1* (Ref #1)
1
Part #64311-KWN-900ZB
Step,l floor*nh1* (Ref #2)
2
Part #64321-KWN-900ZB
Mat,r floor (Ref #3)
3
Part #64325-KWN-900
Mat,l floor (Ref #4)
4
Part #64326-KWN-900
Cover,r s*nha87p* (Ref #5)
5
Part #64431-KWN-900ZB
Cover,r si*r340c* (Ref #5)
5
Part #64431-KWN-900ZC
Cover,l s*nha87p* (Ref #6)
6
Part #64432-KWN-900ZB
Cover,l si*r340c* (Ref #6)
6
Part #64432-KWN-900ZC
Lid,plug mai*nh1* (Ref #7)
7
Part #64434-KWN-900ZB
Cover (lower) (Ref #8)
8
Part #64530-KWN-901
Bolt-washer (Ref #11)
11
Part #93404-060-120-7
Bolt-washer (Ref #11)
11
Part #93404-060-120-7
Bolt-washer (Ref #11)
11
Part #93404-060-120-7
Bolt-washer (Ref #11)
11
Part #93404-060-120-7
Bolt-washer, 6x12 (Ref #12)
12
Part #93404-0601200
Bolt-washer, 6x12 (Ref #12)
12
Part #93404-0601200
Bolt-washer, 6x12 (Ref #12)
12
Part #93404-0601200
Bolt-washer, 6x12 (Ref #12)
12
Part #93404-0601200
