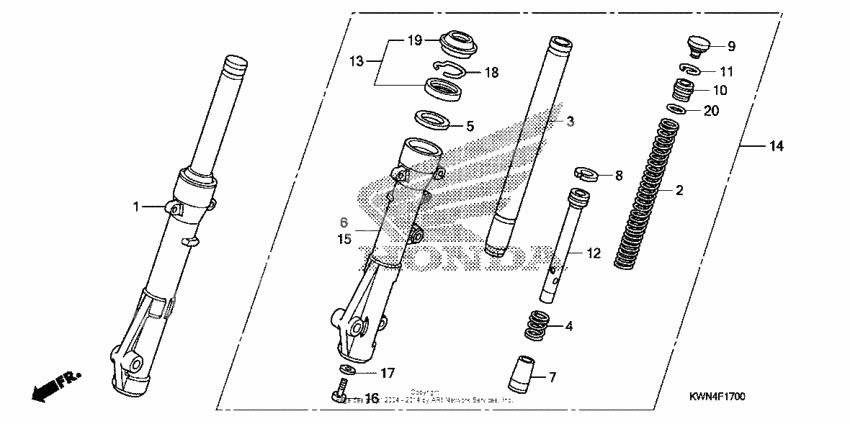

Front fork
Front fork
Fork assy,r fr(co (Ref #1)
1
Part #51400-KWN-305
SPRING,FR FORK (Ref #2)
2
Part #51401-KWN-901
Pipe comp,fr fork (Ref #3)
3
Part #51410-KWN-901
Пружина (Ref #4)
4
Part #51412-GC4-003
Ring, back-up (Ref #5)
5
Part #51412-KK4-003
Case comp,r fr bo (Ref #6)
6
Part #51420-KWN-671
Piece, oil lock (Ref #7)
7
Part #51432-KM7-910
Кольцо поршневое (Ref #8)
8
Part #51437-GS3-003
Cap,fork pipe (Ref #9)
9
Part #51449-GBY-631
Seat,spring upper (Ref #10)
10
Part #51454-GBY-631
Кольцо стопорное (Ref #11)
11
Part #51456-355-003
PIPE,SEAT (Ref #12)
12
Part #51470-KWN-901
Seal set, fr. fork (Ref #13)
13
Part #51490-KRM-852
Fork assy,l fr(co (Ref #14)
14
Part #51500-KWN-305
Case comp,l fr bo (Ref #15)
15
Part #51520-KWN-671
Bolt, socket (8mm) (Ref #16)
16
Part #90116-383-721
Шайба (Ref #17)
17
Part #90544-283-000
Ring, oil seal stop (Ref #18)
18
Part #90601-354-000
DUST SEAL (Ref #19)
19
Part #91254-GAA-003
O RING (Ref #20)
20
Part #91356-GBB-003
