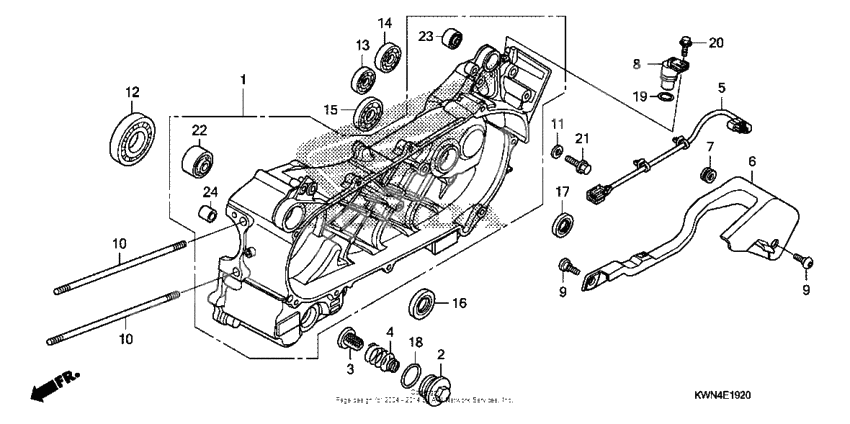

Left crankcase
Left crankcase
Crankcase, l. (Ref #1)
1
Part #11200-KWN-901
Cap, tappet adjusting hole (Ref #2)
2
Part #12361-300-000
Screen, oil filter (Ref #3)
3
Part #15421-KPL-900
Spg,oil filter sc (Ref #4)
4
Part #15426-KVB-900
Sub cord,sp senso (Ref #5)
5
Part #32105-KWN-900
Protr,sp sensor (Ref #6)
6
Part #32112-KWN-900
Grommet,sp sensor (Ref #7)
7
Part #32113-KWN-900
Sensor assy., speed (Ref #8)
8
Part #37700-HP5-601
Bolt,socket 6x18 (Ref #9)
9
Part #90001-KWR-000
Bolt,socket 6x18 (Ref #9)
9
Part #90001-KWR-000
Bolt,socket 6x18 (Ref #9)
9
Part #90001-KWR-000
Bolt,socket 6x18 (Ref #9)
9
Part #90001-KWR-000
Bolt,b stud 8x206 (Ref #10)
10
Part #90032-KWN-900
Bolt,b stud 8x206 (Ref #10)
10
Part #90032-KWN-900
Bolt,b stud 8x206 (Ref #10)
10
Part #90032-KWN-900
Bolt,b stud 8x206 (Ref #10)
10
Part #90032-KWN-900
Шайба (Ref #11)
11
Part #90495-MN5-000
Brg,ball radial 6 (Ref #12)
12
Part #91002-KWN-901
Brg,ball radial 6 (Ref #13)
13
Part #91005-KWN-901
Brg,ball radial 6 (Ref #14)
14
Part #91008-KWN-901
Bearing (6204) (Ref #15)
15
Part #91102-GE1-711
Oil seal,26x45x6 (Ref #16)
16
Part #91202-KWN-901
Oil seal,20x32x6 (Ref #17)
17
Part #91203-KWN-901
O-ring, 30.8mm (Ref #18)
18
Part #91302-001-020
O-ring, 14.8x2.4 (arai) (Ref #19)
19
Part #91356-MA6-005
BOLT (Ref #20)
20
Part #95701-060-160-0
Bolt, flange, 8x16 (Ref #21)
21
Part #95701-0801600
Rub.bush,eng.hang (Ref #22)
22
Part #11103-KVB-901
Under.rubber.bush (Ref #23)
23
Part #11203-KVB-901
Bush,m stand (Ref #24)
24
Part #11205-GBC-300
