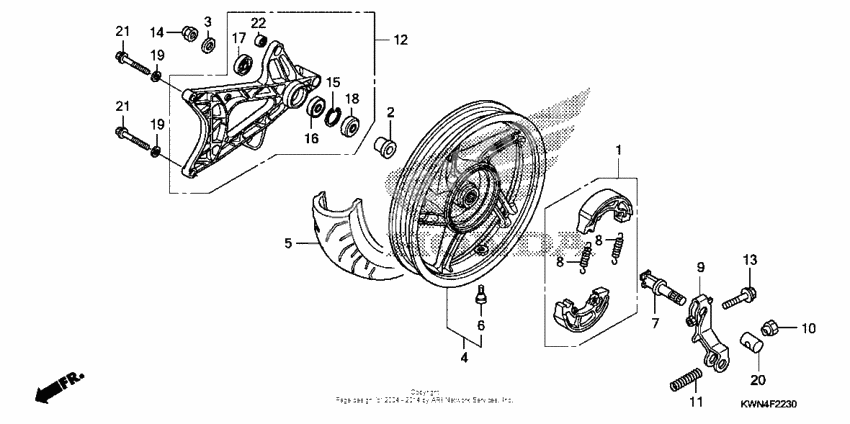

Rear wheel + swingarm
Rear wheel + swingarm
SHOE SET,BRAKE (Ref #1)
1
Part #06430-KWN-900
Collar,rr wheel s (Ref #2)
2
Part #42311-KWN-900
Collar b,rr wheel (Ref #3)
3
Part #42312-KWN-700
Wheel sub*nh303m* (Ref #4)
4
Part #42650-KWN-305ZA
Tire,rr(irc) (Ref #5)
5
Part #42711-KWN-902
Клапан, обод колеса (Ref #6)
6
Part #42753-GM9-743
Cam,rear brake (Ref #7)
7
Part #43141-KWN-930
Spring, brake shoe (Ref #8)
8
Part #43151-329-000
Spring, brake shoe (Ref #8)
8
Part #43151-329-000
Spring, brake shoe (Ref #8)
8
Part #43151-329-000
Spring, brake shoe (Ref #8)
8
Part #43151-329-000
Arm,rear brake (Ref #9)
9
Part #43410-KWN-900
Nut,brake rod adj (Ref #10)
10
Part #43459-GN5-760
Spg,rr brk arm (Ref #11)
11
Part #43472-KVB-900
Swingarm assy (Ref #12)
12
Part #52100-KWN-900
Bolt, flange 6x32 (Ref #13)
13
Part #90112-KVB-900
Nut,u,16mm (Ref #14)
14
Part #90305-KWN-701
Circlip,in 47 (Ref #15)
15
Part #90601-KVG-900
Bearing (6303uu) (Ref #16)
16
Part #91051-KS4-003
Dust seal, 37x25x6 (Ref #17)
17
Part #91258-HB3-003
Валик (Ref #18)
18
Part #91259-KM1-003
Washer, plain, 10mm (Ref #19)
19
Part #9410110000
Washer, plain, 10mm (Ref #19)
19
Part #9410110000
Washer, plain, 10mm (Ref #19)
19
Part #9410110000
Washer, plain, 10mm (Ref #19)
19
Part #9410110000
Joint b, brake arm (Ref #20)
20
Part #9501532001
Bolt, flange, 10x40 (Ref #21)
21
Part #95701-1004000
Bolt, flange, 10x40 (Ref #21)
21
Part #95701-1004000
Bolt, flange, 10x40 (Ref #21)
21
Part #95701-1004000
Bolt, flange, 10x40 (Ref #21)
21
Part #95701-1004000
Under.rubber.bush (Ref #22)
22
Part #11203-KVB-901
