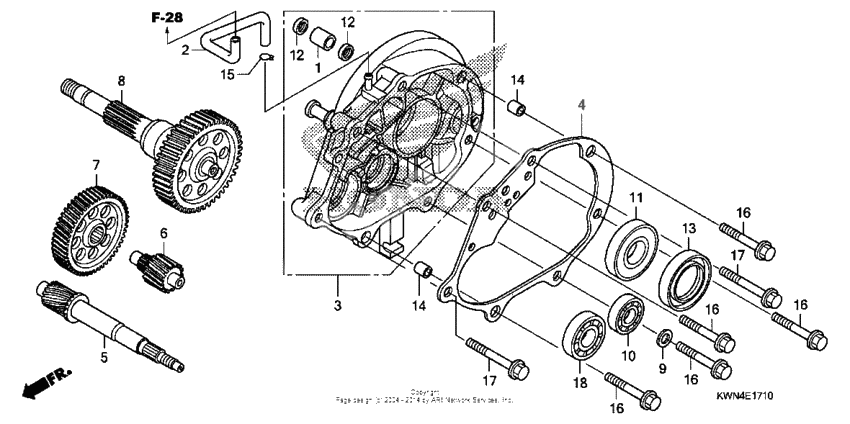

Трансмиссия
Трансмиссия
Sleeve, rr. (Ref #1)
1
Part #11204-KGF-900
Tube,mission brea (Ref #2)
2
Part #11211-KWN-900
Case comp,mission (Ref #3)
3
Part #21200-KWN-900
Gasket,mission ca (Ref #4)
4
Part #21395-KWN-900
SHAFT,DRIVE (Ref #5)
5
Part #23411-KWN-900
SHAFT,COUNTER (Ref #6)
6
Part #23421-KWN-900
Gear,counter (Ref #7)
7
Part #23422-KWN-900
Gear comp,final (Ref #8)
8
Part #23430-KWN-900
Шайба (Ref #9)
9
Part #90495-MN5-000
Brg,ball radial 6 (Ref #10)
10
Part #91006-KWN-901
Brg,ball radial 6 (Ref #11)
11
Part #91009-KWN-901
Oil seal, 14x20x3 (Ref #12)
12
Part #91201-434-003
Oil seal, 14x20x3 (Ref #12)
12
Part #91201-434-003
Oil seal, 14x20x3 (Ref #12)
12
Part #91201-434-003
Oil seal, 14x20x3 (Ref #12)
12
Part #91201-434-003
Oil seal,34x52x7 (Ref #13)
13
Part #91204-KWN-900
Dowel pin (Ref #14)
14
Part #94301-10120
Dowel pin (Ref #14)
14
Part #94301-10120
Dowel pin (Ref #14)
14
Part #94301-10120
Dowel pin (Ref #14)
14
Part #94301-10120
CLIP (Ref #15)
15
Part #95002-50000
Bolt, flange, 8x55 (Ref #17)
17
Part #95701-0805500
Bolt, flange, 8x55 (Ref #17)
17
Part #95701-0805500
Bolt, flange, 8x55 (Ref #17)
17
Part #95701-0805500
Bolt, flange, 8x55 (Ref #17)
17
Part #95701-0805500
Bearing, radial ball, 6202 (Ref #18)
18
Part #96100-6202000
