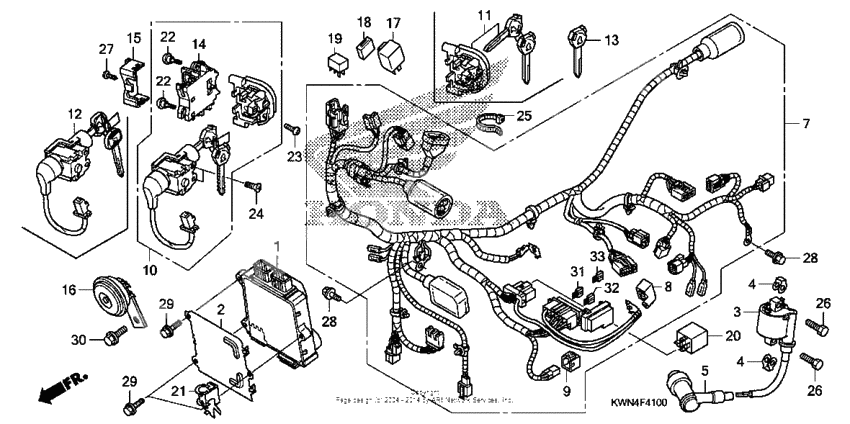

Wire harness
Wire harness
Eng control unit (Ref #1)
1
Part #30400-KWN-671
Cover,eng contl u (Ref #2)
2
Part #30401-KWN-900
Coil comp, ign (Ref #3)
3
Part #30510-KWN-902
Кольцо/шайба (Ref #4)
4
Part #30520-GFM-900
Кольцо/шайба (Ref #4)
4
Part #30520-GFM-900
Кольцо/шайба (Ref #4)
4
Part #30520-GFM-900
Кольцо/шайба (Ref #4)
4
Part #30520-GFM-900
Cap assy,noise su (Ref #5)
5
Part #30700-KWN-901
COVER (Ref #8)
8
Part #32412-MV4-000
Cap, dummy (4p) (Ref #9)
9
Part #32606-GEV-761
Key set (Ref #10)
10
Part #35010-KWN-900
Set,key shutter (Ref #11)
11
Part #35011-KWN-900
Switch assy,comb (Ref #12)
12
Part #35100-KWN-901
KEY,BLANK (Ref #13)
13
Part #35121-KVY-900
Sw assy,fuel lid& (Ref #14)
14
Part #35190-KVG-901
Cover,cable (Ref #15)
15
Part #35191-KVG-901
Horn comp (high) (Ref #16)
16
Part #38110-KWN-901
Relay, turn signal (Ref #17)
17
Part #38301-KJ6-743
Suspension, winker relay (mitsuba) (Ref #18)
18
Part #38306-KK4-000
Relay comp,micro (Ref #19)
19
Part #38501-KWN-901
Relay comp,power (Ref #20)
20
Part #38502-KWN-701
Clamper a,rr brk (Ref #21)
21
Part #43456-KWN-900
Болт (Ref #22)
22
Part #90101-MT4-000
Болт (Ref #22)
22
Part #90101-MT4-000
Болт (Ref #22)
22
Part #90101-MT4-000
Болт (Ref #22)
22
Part #90101-MT4-000
Bolt,torx,6x10 (Ref #23)
23
Part #90106-KPH-690
Screw (6x12) (Ref #24)
24
Part #90164-028-000
Band, wire (black) (Ref #25)
25
Part #90652-KT1-771
Bolt, hex., 6x20 (Ref #26)
26
Part #92101-06020-4J
Bolt, hex., 6x20 (Ref #26)
26
Part #92101-06020-4J
Bolt, hex., 6x20 (Ref #26)
26
Part #92101-06020-4J
Bolt, hex., 6x20 (Ref #26)
26
Part #92101-06020-4J
Болт (Ref #27)
27
Part #93901-24320
BOLT (Ref #28)
28
Part #95701-060-120-0
BOLT (Ref #28)
28
Part #95701-060-120-0
BOLT (Ref #28)
28
Part #95701-060-120-0
BOLT (Ref #28)
28
Part #95701-060-120-0
BOLT (Ref #29)
29
Part #95701-060-160-0
BOLT (Ref #29)
29
Part #95701-060-160-0
BOLT (Ref #29)
29
Part #95701-060-160-0
BOLT (Ref #29)
29
Part #95701-060-160-0
Bolt, flange, 8x12 (Ref #30)
30
Part #95701-0801200
Fuse (Ref #31)
31
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #32)
32
Part #98200-41500
ПРЕДОХРАНИТЕЛЬ 30A (Ref #33)
33
Part #98200-43000
