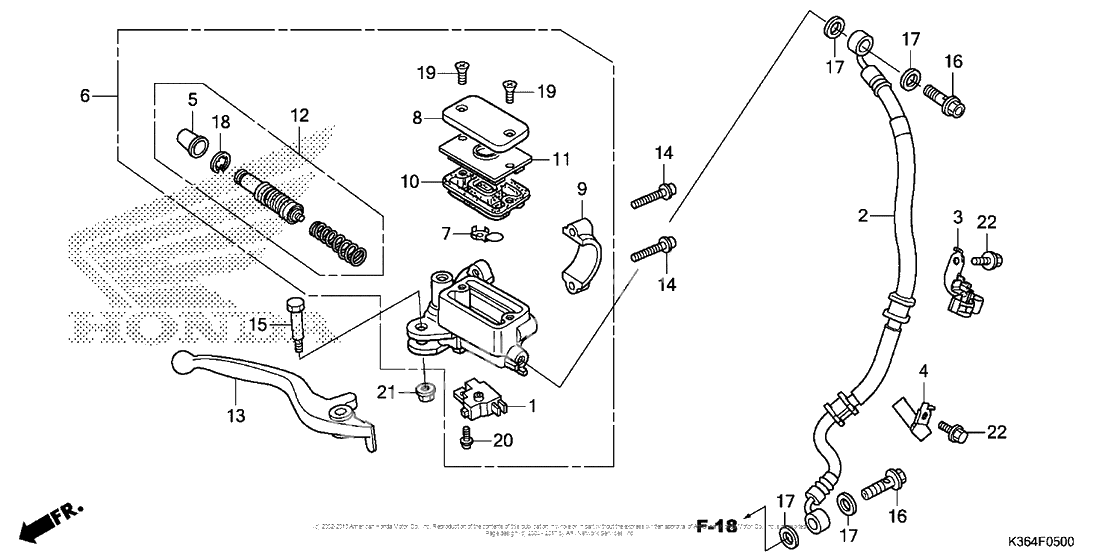

Передний тормозной цилиндр
Передний тормозной цилиндр
Switch, fr. stop (Ref #1)
1
Part #35340-MGS-D31
Hose, fr. brake (Ref #2)
2
Part #45126-KWN-711
Clamp a, brake hose (Ref #3)
3
Part #45155-KWN-710
Clamper b,brk cab (Ref #4)
4
Part #45157-KWN-930
Ботинок (Ref #5)
5
Part #45504-410-003
M/cyl sub-assy, fr. (Ref #6)
6
Part #45510-K36-305
PROTECTOR (Ref #7)
7
Part #45512-MA6-006
Cap, master cylinder (Ref #8)
8
Part #45513-HA2-006
HOLDER (Ref #9)
9
Part #45517-166-006
DIAPHRAGM (Ref #10)
10
Part #45520-MG7-006
Пластина (Ref #11)
11
Part #45521-K21-901
Master cylinder set (Ref #12)
12
Part #45530-471-831
Lever, r. handlebar (Ref #13)
13
Part #53175-KWN-315
Bolt,flange socke (Ref #14)
14
Part #90101-KWN-900
Bolt,handle,lever (Ref #15)
15
Part #90114-KGH-900
Bolt, oil (10x22) (Ref #16)
16
Part #90145-MS9-612
Шайба (Ref #17)
17
Part #90545-300-000
Circlip (Ref #18)
18
Part #90651-MA5-671
Болт (Ref #19)
19
Part #93600-040120G
Screw-washer (Ref #20)
20
Part #93893-040-120-7
Гайка (Ref #21)
21
Part #94050-06000
BOLT (Ref #22)
22
Part #95701-060-120-0
