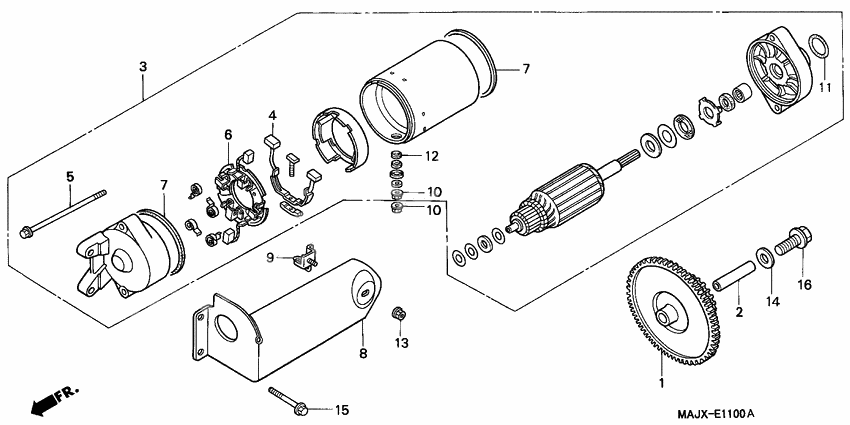

Starting motor
Starting motor
Шестерня (Ref #1)
1
Part #28101-MT3-000
Pin (10x75) (Ref #2)
2
Part #28105-MT3-000
Motor assy., starter (Ref #3)
3
Part #31200-MT3-003
Terminal set, brush (Ref #4)
4
Part #31201-MR6-008
Bolt, setting (Ref #5)
5
Part #31205-MR1-008
Holder set, brush (Ref #6)
6
Part #31206-MR6-008
RING (Ref #7)
7
Part #31207-KS5-901
RING (Ref #7)
7
Part #31207-KS5-901
RING (Ref #7)
7
Part #31207-KS5-901
RING (Ref #7)
7
Part #31207-KS5-901
Protr, starter motor (Ref #8)
8
Part #31207-MAJ-G20
Stay, heat guard (Ref #9)
9
Part #31209-MT3-000
Nut-washer, 6mm (Ref #10)
10
Part #90071-MB0-000
Nut-washer, 6mm (Ref #10)
10
Part #90071-MB0-000
Nut-washer, 6mm (Ref #10)
10
Part #90071-MB0-000
Nut-washer, 6mm (Ref #10)
10
Part #90071-MB0-000
Прокладка (Ref #11)
11
Part #91312-MG7-003
Прокладка (Ref #12)
12
Part #91320-MB0-000
Гайка (Ref #13)
13
Part #94050-06000
Шайба (Ref #14)
14
Part #94109-12000
BOLT (Ref #15)
15
Part #95701-060-250-0
Bolt, flange, 12x30 (Ref #16)
16
Part #95701-1203000
