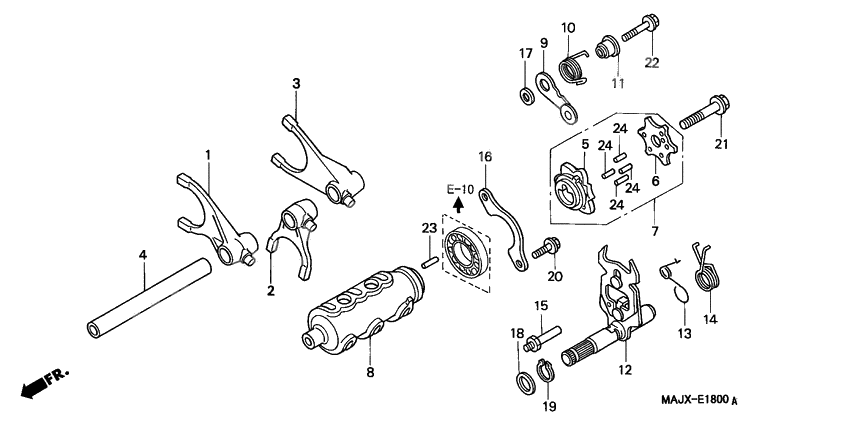

Gearshift drum
Gearshift drum
Fork, fr. gearshift (Ref #1)
1
Part #24211-MT3-000
Вилка (Ref #2)
2
Part #24212-MT3-000
Fork, gearshift (Ref #3)
3
Part #24213-MT3-000
SHAFT (Ref #4)
4
Part #24261-MT3-000
Center (Ref #5)
5
Part #24302-MA6-010
Plate, drum center (Ref #6)
6
Part #24303-MA6-010
Gearshift assy. (Ref #7)
7
Part #24310-MT3-000
Drum, gearshift (Ref #8)
8
Part #24311-MT3-010
STOPPER (Ref #9)
9
Part #24430-MT3-000
Пружина (Ref #10)
10
Part #24435-MT3-670
COLLAR (Ref #11)
11
Part #24438-MT3-000
Spindle, gearshift (Ref #12)
12
Part #24610-MY3-000
Пружина (Ref #13)
13
Part #24624-MT3-000
Пружина (Ref #14)
14
Part #24651-107-000
PIN (Ref #15)
15
Part #24652-259-000
PLATE (Ref #16)
16
Part #24655-MT3-000
Washer, drum stopper (Ref #17)
17
Part #90417-360-000
Washer, 14.2mm (Ref #18)
18
Part #90451-115-000
Circlip (Ref #19)
19
Part #94510-14000
BOLT (Ref #20)
20
Part #95701-060-140-0
Bolt, flange, 8x40 (Ref #21)
21
Part #95701-0804000
Bolt, flange, 6x30 (Ref #22)
22
Part #95801-0603000
Roller (4x13) (Ref #23)
23
Part #9622040130
