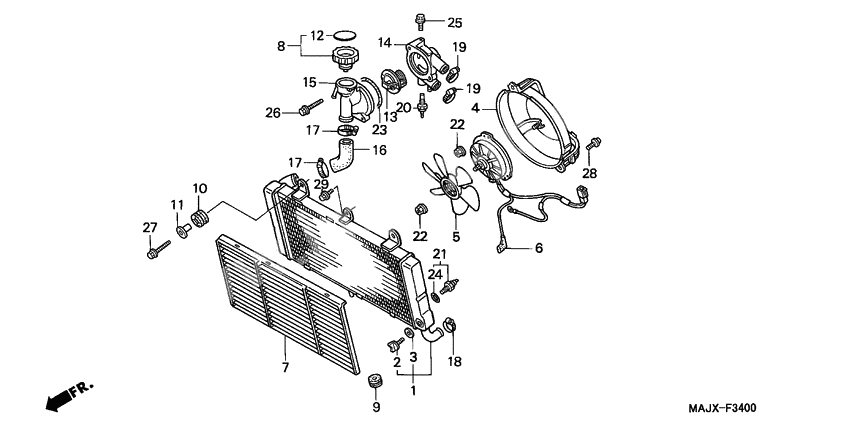

Radiator
Radiator
Радиатор (Ref #1)
1
Part #19010-MAJ-G20
Valve, drain (Ref #2)
2
Part #19011-PH9-014
PACKING (Ref #3)
3
Part #19012-PA0-004
SHROUD (Ref #4)
4
Part #19015-MT3-003
Fan, cooling (Ref #5)
5
Part #19020-MM5-003
Motor, fan (Ref #6)
6
Part #19030-MT3-003
Grille, radiator (Ref #7)
7
Part #19032-MAJ-G20
Крышка радиатора (Ref #8)
8
Part #19045-MY3-621
RUBBER (Ref #9)
9
Part #19051-GE2-000
Rubber, radiator mounting (Ref #10)
10
Part #19051-KA3-830
COLLAR (Ref #11)
11
Part #19052-MGH-640
Seal, radiator cap (Ref #12)
12
Part #19055-MV9-881
Thermostat (Ref #13)
13
Part #19300-MG9-000
Case, thermostat (Ref #14)
14
Part #19311-MT3-000
Ворот (Ref #15)
15
Part #19312-MS2-000
Hose, radiator (Ref #16)
16
Part #19503-MT3-000
Clamp, radiator hose (Ref #17)
17
Part #19509-MM5-003
Clamp, radiator hose (Ref #17)
17
Part #19509-MM5-003
Clamp, radiator hose (Ref #17)
17
Part #19509-MM5-003
Clamp, radiator hose (Ref #17)
17
Part #19509-MM5-003
Clamp, hose, 30-37mm (Ref #18)
18
Part #19516-GAG-003
Clamp, hose (22-29) (Ref #19)
19
Part #19517-ML7-691
Clamp, hose (22-29) (Ref #19)
19
Part #19517-ML7-691
Clamp, hose (22-29) (Ref #19)
19
Part #19517-ML7-691
Clamp, hose (22-29) (Ref #19)
19
Part #19517-ML7-691
Thermo unit (Ref #20)
20
Part #37750-PC1-004
Switch, thermostat (Ref #21)
21
Part #37760-MT2-003
Nut, serrate (5mm) (Ref #22)
22
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #22)
22
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #22)
22
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #22)
22
Part #90315-MK3-003
Прокладка (Ref #23)
23
Part #91307-MB0-003
Прокладка (Ref #24)
24
Part #91307-PH7-660
BOLT (Ref #25)
25
Part #95701-060-160-0
Bolt, flange, 6x22 (Ref #26)
26
Part #95701-0602200
BOLT (Ref #27)
27
Part #95701-060-220-7
Bolt, flange, 6x10 (Ref #28)
28
Part #96001-060-100-0
BOLT (Ref #29)
29
Part #96001-060-100-7
-
819045-MY3-671
Стакан карбюратора
1Replaced by 19045-MY3-621 Доступно: Нет в наличии
-
1219055-MV9-921
Seal, radiator cap
1Replaced by 19055-MV9-881 Доступно: Нет в наличии
