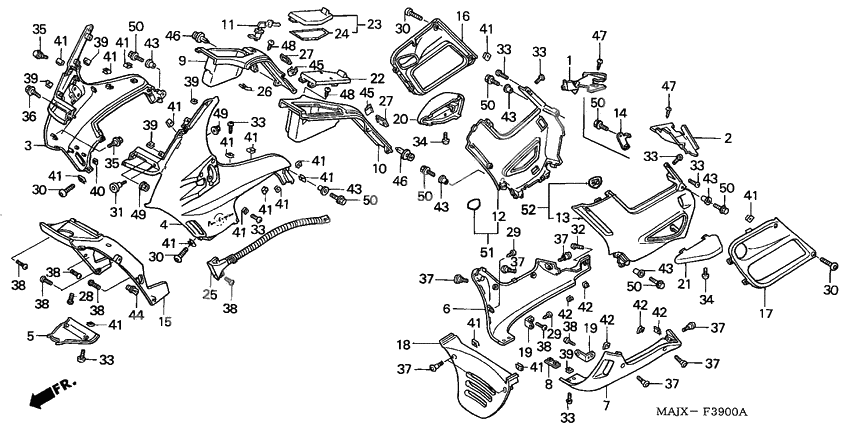

Cowling comp
Cowling comp
Guard, r. fr. air (Ref #1)
1
Part #19070-MT3-000
Guard, l. fr. air (Ref #2)
2
Part #19170-MT3-000
Cowl, r. (type22) (Ref #3)
3
Part #64200-MAJ-T80ZA
Cowl, l. (type22) (Ref #4)
4
Part #64201-MAJ-T80ZA
Cvr, headlight *nh1* (Ref #5)
5
Part #64215-MY3-000ZB
Cowl, r. *nh285* (Ref #6)
6
Part #64220-MT3-000ZA
Cowl, l. *nh285* (Ref #7)
7
Part #64221-MT3-000ZA
Plate, cowl setting (Ref #8)
8
Part #64222-MT3-000
Pocket, r. *nh285* (Ref #9)
9
Part #64225-MAJ-G00ZA
Pocket, l. *nh285* (Ref #10)
10
Part #64226-MAJ-G00ZA
Lock, pocket lid (Ref #11)
11
Part #64228-MT3-003
Cowl, r. *r114cu* (Ref #12)
12
Part #64230-MAJ-G50ZC
Cowl, l. *r114cu* (Ref #13)
13
Part #64231-MAJ-G50ZC
Stay, middle cowl (Ref #14)
14
Part #64233-MT3-000
Cowl *r114cu* (Ref #15)
15
Part #64235-MT3-000ZK
Cover, r. *r114cu* (Ref #16)
16
Part #64245-MAJ-G50ZC
Cover, l. *r114cu* (Ref #17)
17
Part #64246-MAJ-A40ZC
Panel, fr. *nh285* (Ref #18)
18
Part #64255-MT3-000ZA
Stay, cowl (lower) (Ref #19)
19
Part #64256-MT3-000
Stay, cowl (lower) (Ref #19)
19
Part #64256-MT3-000
Stay, cowl (lower) (Ref #19)
19
Part #64256-MT3-000
Stay, cowl (lower) (Ref #19)
19
Part #64256-MT3-000
Cover, r. *nh285* (Ref #20)
20
Part #64260-MAJ-G00ZA
Cover, l. *nh285* (Ref #21)
21
Part #64261-MT3-000ZA
Lid, l. *nh285* (Ref #22)
22
Part #64271-MT3-010ZA
Lid, r. *nh285* (Ref #23)
23
Part #64272-MAJ-G00ZA
Seal, pocket lid (Ref #24)
24
Part #64274-MT3-300
Duct, fresh air in. (Ref #25)
25
Part #64280-MT3-000
Пружина (Ref #26)
26
Part #75581-673-000
Cap *nh285* (Ref #27)
27
Part #77121-MT3-000ZA
Cap *nh285* (Ref #27)
27
Part #77121-MT3-000ZA
Cap *nh285* (Ref #27)
27
Part #77121-MT3-000ZA
Cap *nh285* (Ref #27)
27
Part #77121-MT3-000ZA
Screw (5x16) (Ref #28)
28
Part #90001-MG1-000
Болт (Ref #29)
29
Part #93913-14280
Болт (Ref #29)
29
Part #93913-14280
Болт (Ref #29)
29
Part #93913-14280
Болт (Ref #29)
29
Part #93913-14280
Screw (6x19) (Ref #31)
31
Part #90104-MN4-000
Screw, pan (6x11) (Ref #32)
32
Part #90106-KY2-701
Screw, truss (5x16) (Ref #34)
34
Part #90111-MT3-000
Screw, truss (5x16) (Ref #34)
34
Part #90111-MT3-000
Screw, truss (5x16) (Ref #34)
34
Part #90111-MT3-000
Screw, truss (5x16) (Ref #34)
34
Part #90111-MT3-000
BOLT (Ref #35)
35
Part #90111-162-000
BOLT (Ref #35)
35
Part #90111-162-000
BOLT (Ref #35)
35
Part #90111-162-000
BOLT (Ref #35)
35
Part #90111-162-000
Болт (Ref #36)
36
Part #90113-MJ4-670
Nut, clip (6mm) (Ref #40)
40
Part #90311-MT3-000
CLIP (Ref #44)
44
Part #90657-SB0-003
CLIP (Ref #45)
45
Part #90666-SD4-003
CLIP (Ref #45)
45
Part #90666-SD4-003
CLIP (Ref #45)
45
Part #90666-SD4-003
CLIP (Ref #45)
45
Part #90666-SD4-003
ДЕТАЛЬ (Ref #46)
46
Part #90683-GR1-003
ДЕТАЛЬ (Ref #46)
46
Part #90683-GR1-003
ДЕТАЛЬ (Ref #46)
46
Part #90683-GR1-003
ДЕТАЛЬ (Ref #46)
46
Part #90683-GR1-003
Болт (Ref #47)
47
Part #93903-25080
Болт (Ref #47)
47
Part #93903-25080
Болт (Ref #47)
47
Part #93903-25080
Болт (Ref #47)
47
Part #93903-25080
Болт (Ref #48)
48
Part #93903-25280
Болт (Ref #48)
48
Part #93903-25280
Болт (Ref #48)
48
Part #93903-25280
Болт (Ref #48)
48
Part #93903-25280
Гайка (Ref #49)
49
Part #94050-06000
Гайка (Ref #49)
49
Part #94050-06000
Гайка (Ref #49)
49
Part #94050-06000
Гайка (Ref #49)
49
Part #94050-06000
