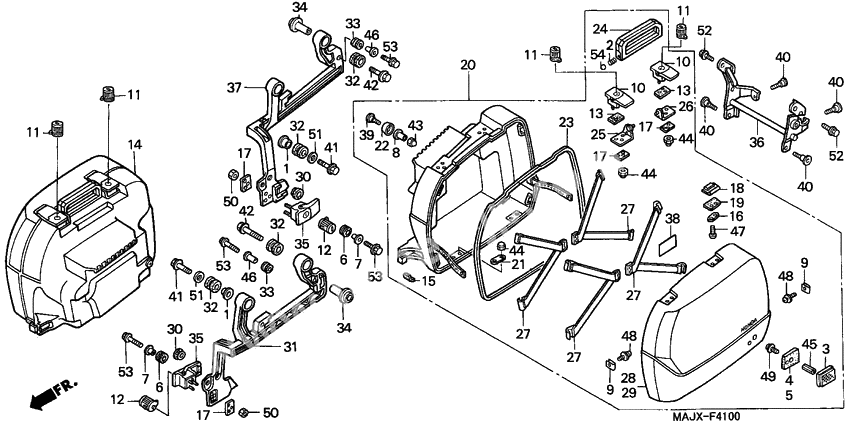

Saddlebag
Saddlebag
COLLAR (Ref #1)
1
Part #18422-MA6-000
COLLAR (Ref #1)
1
Part #18422-MA6-000
COLLAR (Ref #1)
1
Part #18422-MA6-000
COLLAR (Ref #1)
1
Part #18422-MA6-000
Пружина (Ref #2)
2
Part #22431-121-880
Reflector, rr. (Ref #3)
3
Part #33742-MB2-672
Cover, r (Ref #4)
4
Part #33746-MT3-670
Cover, l (Ref #5)
5
Part #33747-MT3-670
RUBBER (Ref #6)
6
Part #43516-HA2-000
RUBBER (Ref #6)
6
Part #43516-HA2-000
RUBBER (Ref #6)
6
Part #43516-HA2-000
RUBBER (Ref #6)
6
Part #43516-HA2-000
Collar (6.3x13) (Ref #7)
7
Part #50324-425-010
Collar (6.3x13) (Ref #7)
7
Part #50324-425-010
Collar (6.3x13) (Ref #7)
7
Part #50324-425-010
Collar (6.3x13) (Ref #7)
7
Part #50324-425-010
Collar, fr. fender (Ref #8)
8
Part #61105-MA3-000
Nut, clip (4mm) (Ref #9)
9
Part #64521-KY6-000
Nut, clip (4mm) (Ref #9)
9
Part #64521-KY6-000
Nut, clip (4mm) (Ref #9)
9
Part #64521-KY6-000
Nut, clip (4mm) (Ref #9)
9
Part #64521-KY6-000
Lock assy. a, bag (Ref #10)
10
Part #81170-MT3-003
Lock assy. a, bag (Ref #10)
10
Part #81170-MT3-003
Lock assy. a, bag (Ref #10)
10
Part #81170-MT3-003
Lock assy. a, bag (Ref #10)
10
Part #81170-MT3-003
Cylinder b, bag lock (Ref #12)
12
Part #81172-MT3-003
Cylinder b, bag lock (Ref #12)
12
Part #81172-MT3-003
Cylinder b, bag lock (Ref #12)
12
Part #81172-MT3-003
Cylinder b, bag lock (Ref #12)
12
Part #81172-MT3-003
Ручка резиновая (Ref #13)
13
Part #81175-MT3-003
Ручка резиновая (Ref #13)
13
Part #81175-MT3-003
Ручка резиновая (Ref #13)
13
Part #81175-MT3-003
Ручка резиновая (Ref #13)
13
Part #81175-MT3-003
Saddlebag (type22) (Ref #14)
14
Part #81200-MAJ-A90ZA
Rubber, protector (Ref #15)
15
Part #81214-MT3-300
Plate, hook setting (Ref #16)
16
Part #81222-MG9-770
Hook, lock (Ref #18)
18
Part #81223-MT3-000
Rubber, hook (Ref #19)
19
Part #81224-MT3-000
Saddlebag (type22) (Ref #20)
20
Part #81300-MAJ-A90ZA
Plate, hinge setting (Ref #21)
21
Part #81318-MT3-000
Cushion, saddlebag (Ref #22)
22
Part #81327-MT3-000
Воздухопровод радиатора (Ref #23)
23
Part #81331-MT3-300
Grip *nh285* (Ref #24)
24
Part #81335-MT3-000ZA
Hinge, grip (Ref #25)
25
Part #81336-MT3-000
Hinge, grip (Ref #26)
26
Part #81337-MT3-000
Cover, r. (type22) (Ref #28)
28
Part #81450-MAJ-A90ZA
Cover, l. (type22) (Ref #29)
29
Part #81550-MAJ-A90ZA
Уплотнение (Ref #30)
30
Part #83551-MA6-000
Уплотнение (Ref #30)
30
Part #83551-MA6-000
Уплотнение (Ref #30)
30
Part #83551-MA6-000
Уплотнение (Ref #30)
30
Part #83551-MA6-000
Stay, r. saddlebag (Ref #31)
31
Part #84250-MT3-000
RUBBER (Ref #33)
33
Part #84253-MT3-000
RUBBER (Ref #33)
33
Part #84253-MT3-000
RUBBER (Ref #33)
33
Part #84253-MT3-000
RUBBER (Ref #33)
33
Part #84253-MT3-000
COLLAR (Ref #34)
34
Part #84254-MT3-000
COLLAR (Ref #34)
34
Part #84254-MT3-000
COLLAR (Ref #34)
34
Part #84254-MT3-000
COLLAR (Ref #34)
34
Part #84254-MT3-000
Lock assy. b, bag (Ref #35)
35
Part #84260-MT3-003
Lock assy. b, bag (Ref #35)
35
Part #84260-MT3-003
Lock assy. b, bag (Ref #35)
35
Part #84260-MT3-003
Lock assy. b, bag (Ref #35)
35
Part #84260-MT3-003
STOPPER (Ref #36)
36
Part #84300-MT3-000
Stay, l. saddlebag (Ref #37)
37
Part #84350-MT3-000
Label,cargo limit (Ref #38)
38
Part #87520-MZ3-620
Label (9.0kg) (Ref #38)
38
Part #87520-MZ3-310
Screw, panel (inner) (Ref #39)
39
Part #90105-MN5-000
Bolt, flange, 8x44 (Ref #41)
41
Part #90154-KZ3-000
Bolt, flange, 8x44 (Ref #41)
41
Part #90154-KZ3-000
Bolt, flange, 8x44 (Ref #41)
41
Part #90154-KZ3-000
Bolt, flange, 8x44 (Ref #41)
41
Part #90154-KZ3-000
Болт (Ref #42)
42
Part #90155-KZ3-000
Болт (Ref #42)
42
Part #90155-KZ3-000
Болт (Ref #42)
42
Part #90155-KZ3-000
Болт (Ref #42)
42
Part #90155-KZ3-000
Nut, cap, 6mm (Ref #43)
43
Part #90201-428-900
Гайка специальная (Ref #45)
45
Part #90337-MT3-670
Collar (6.3x14.5) (Ref #46)
46
Part #90503-KAE-000
Collar (6.3x14.5) (Ref #46)
46
Part #90503-KAE-000
Collar (6.3x14.5) (Ref #46)
46
Part #90503-KAE-000
Collar (6.3x14.5) (Ref #46)
46
Part #90503-KAE-000
Screw, pan (4x14) (Ref #47)
47
Part #93500-040140G
Screw-washer (Ref #48)
48
Part #93894-040-120-7
Screw-washer (Ref #48)
48
Part #93894-040-120-7
Screw-washer (Ref #48)
48
Part #93894-040-120-7
Screw-washer (Ref #48)
48
Part #93894-040-120-7
Screw-washer (Ref #49)
49
Part #93894-050-120-7
Гайка (Ref #50)
50
Part #94002-040-800-S
Гайка (Ref #50)
50
Part #94002-040-800-S
Гайка (Ref #50)
50
Part #94002-040-800-S
Гайка (Ref #50)
50
Part #94002-040-800-S
Washer, plain, 8mm (Ref #51)
51
Part #9410308000
Washer, plain, 8mm (Ref #51)
51
Part #9410308000
Washer, plain, 8mm (Ref #51)
51
Part #9410308000
Washer, plain, 8mm (Ref #51)
51
Part #9410308000
BOLT (Ref #52)
52
Part #95701-060-120-8
BOLT (Ref #52)
52
Part #95701-060-120-8
BOLT (Ref #52)
52
Part #95701-060-120-8
BOLT (Ref #52)
52
Part #95701-060-120-8
Ball (Ref #54)
54
Part #96211-07000
