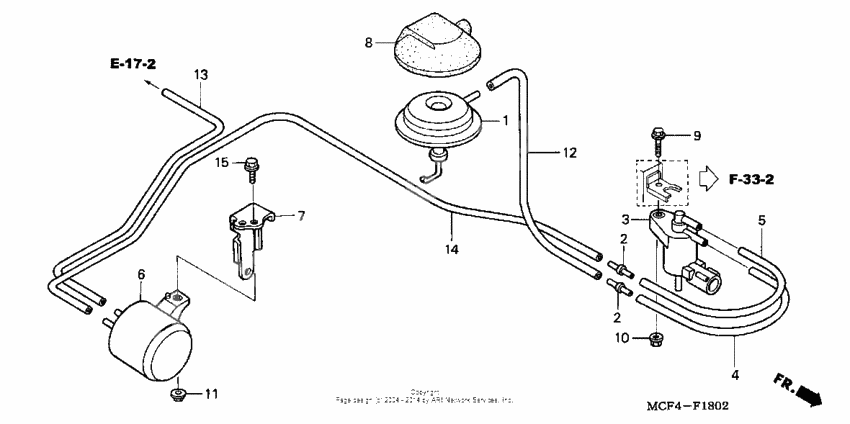

Vacuum tank ('02-'05)
Vacuum tank ('02-'05)
DIAPHRAGM (Ref #1)
1
Part #17238-MCF-000
JOINT (Ref #2)
2
Part #17414-PC6-660
JOINT (Ref #2)
2
Part #17414-PC6-660
JOINT (Ref #2)
2
Part #17414-PC6-660
JOINT (Ref #2)
2
Part #17414-PC6-660
Valve assy. (Ref #3)
3
Part #36163-PV0-004
Hose, solenoid valve (Ref #4)
4
Part #36164-MCF-000
Tube, solenoid valve (Ref #5)
5
Part #36166-MCF-D30
Tank assy., vacuum (Ref #6)
6
Part #36620-MCF-000
STAY (Ref #7)
7
Part #50313-MCF-000
Крышка диафрагмы (Ref #8)
8
Part #64533-MCF-000
Bolt-washer (Ref #9)
9
Part #93401-050-200-7
Гайка (Ref #10)
10
Part #94050-05070
ナット (Ref #11)
11
Part #94050-06070
Bulk hose (3.5x1000) (Ref #12)
12
Part #95005-350-0120M
Bulk hose (3.5x8000) (Ref #13)
13
Part #95005-350-0810M
