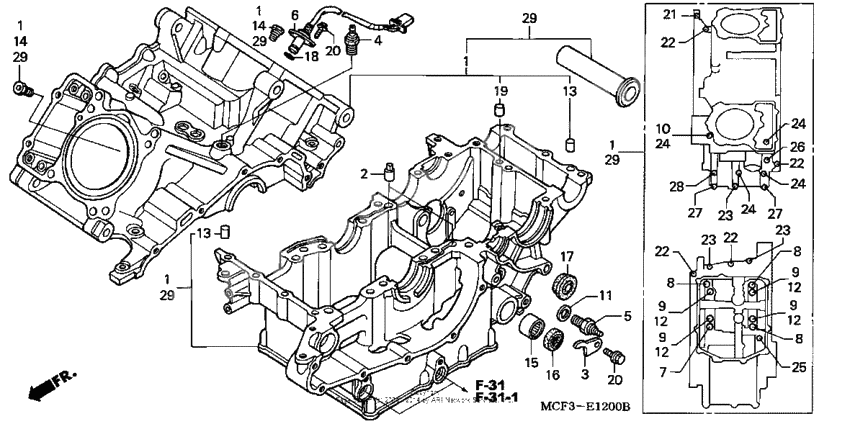

Картер
Картер
Ресивер (Ref #2)
2
Part #11104-MW0-000
Plate, spindle (Ref #3)
3
Part #24612-MAL-600
Переключатель прессуры масла (Ref #4)
4
Part #35500-MJ4-024
Sw.assy,neutral (Ref #5)
5
Part #35600-KE8-003
Sensor assy., speed (Ref #6)
6
Part #37700-MAL-602
Bolt-washer (10x80) (Ref #7)
7
Part #90001-MBB-003
Шайба (Ref #10)
10
Part #90442-028-000
Washer, neutral (Ref #11)
11
Part #90443-MJ6-000
Установочный штифт (Ref #13)
13
Part #90701-MV9-670
Установочный штифт (Ref #13)
13
Part #90701-MV9-670
Установочный штифт (Ref #13)
13
Part #90701-MV9-670
Установочный штифт (Ref #13)
13
Part #90701-MV9-670
Jet, oil (#80) (Ref #14)
14
Part #90901-MCF-000
Jet, oil (#80) (Ref #14)
14
Part #90901-MCF-000
Jet, oil (#80) (Ref #14)
14
Part #90901-MCF-000
Jet, oil (#80) (Ref #14)
14
Part #90901-MCF-000
Bearing (14x22x16) (Ref #15)
15
Part #91106-KM1-013
Oil seal (14x22x5) (Ref #16)
16
Part #91203-KA4-771
Oil seal (8x25x7) (Ref #17)
17
Part #91204-MG8-003
O-ring, 18.1x3.6 (Ref #18)
18
Part #91302-MAL-601
Pin b (Ref #19)
19
Part #94302-08140
BOLT (Ref #20)
20
Part #95701-060-140-0
BOLT (Ref #20)
20
Part #95701-060-140-0
BOLT (Ref #20)
20
Part #95701-060-140-0
BOLT (Ref #20)
20
Part #95701-060-140-0
Bolt, flange, 6x28 (Ref #21)
21
Part #95701-0602800
Bolt, flange, 8x80 (Ref #25)
25
Part #95701-0808000
BOLT (Ref #26)
26
Part #95701-080-900-0
BOLT (Ref #27)
27
Part #95701-100-500-0
BOLT (Ref #27)
27
Part #95701-100-500-0
BOLT (Ref #27)
27
Part #95701-100-500-0
BOLT (Ref #27)
27
Part #95701-100-500-0
Bolt, flange, 10x105 (Ref #28)
28
Part #95701-1010500
Bolt, flange, 10x105 (Ref #28)
28
Part #95701-1010500
Bolt, flange, 10x105 (Ref #28)
28
Part #95701-1010500
Bolt, flange, 10x105 (Ref #28)
28
Part #95701-1010500
