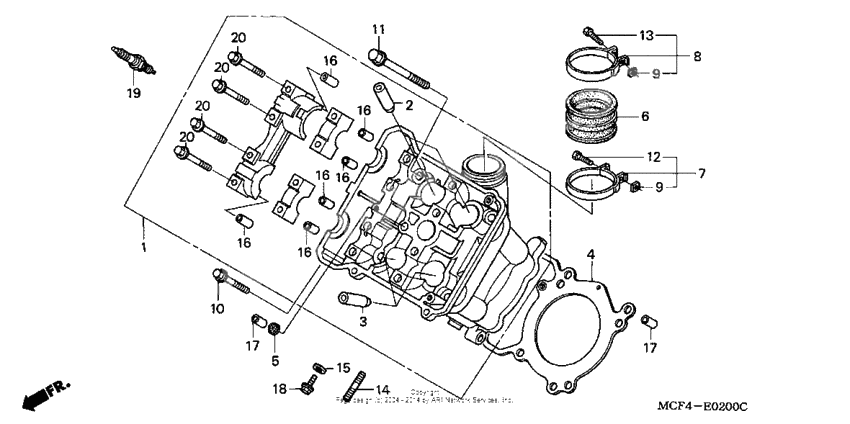

Cylinder head (fr.)
Cylinder head (fr.)
Cylinder head, fr. (Ref #1)
1
Part #12010-MCF-000
Направляющая клапана (Ref #2)
2
Part #12204-MBB-305
Guide (os) (Ref #3)
3
Part #12205-MCF-305
Gasket, fr. cyl hd (Ref #4)
4
Part #12251-MCF-003
Gasket b, cyl hd cvr (Ref #5)
5
Part #12395-MAT-750
Изолятор (Ref #6)
6
Part #16211-MCF-640
Band, insulator (Ref #7)
7
Part #16218-MCF-000
Band, insulator (Ref #8)
8
Part #16219-MCF-000
Nut, square (5mm) (Ref #9)
9
Part #16222-MV4-300
Nut, square (5mm) (Ref #9)
9
Part #16222-MV4-300
Nut, square (5mm) (Ref #9)
9
Part #16222-MV4-300
Nut, square (5mm) (Ref #9)
9
Part #16222-MV4-300
Болт (Ref #10)
10
Part #90004-GHB-720
Bolt-washer (11x105) (Ref #11)
11
Part #90004-MCF-000
Bolt (5x28) (Ref #12)
12
Part #90005-MAS-E00
Bolt (5x28) (Ref #13)
13
Part #90023-MM5-000
Болт заклепка (Ref #14)
14
Part #90035-MZ1-000
Шайба (Ref #15)
15
Part #90463-ML7-000
Dowel pin (Ref #17)
17
Part #94301-10160
Dowel pin (Ref #17)
17
Part #94301-10160
Dowel pin (Ref #17)
17
Part #94301-10160
Dowel pin (Ref #17)
17
Part #94301-10160
BOLT (Ref #18)
18
Part #96001-060-140-0
S/plg (fr9bi-11) (Ref #19)
19
Part #980795917U
Spark plug (ik27c11) (Ref #19)
19
Part #980795915U
S/plg (fr8bi-11) (Ref #19)
19
Part #980795817U
Spark plug (ik24c11) (Ref #19)
19
Part #980795815U
